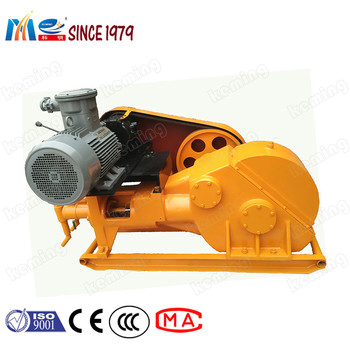

| Product: | 2TGZ-60/210 KEMING Mechanical Grout Pump Machine | Keyword: | Mechanical Grout Pump |
|---|---|---|---|
| Drive: | Electric Or Diesel Motor | After-sales Service: | Online Support |
| Certification: | CE, ISO | ||
| High Light: | Mechanical Grout Pump,Stable Performance Grout Pump Machine,Mechanical Grout Pump With Adjustable Volume |
||
KEMING Mechanical Grout Pump has four gear shift for speed optional in every model.
1. Convenient operation and maintenance.
2. The pump can convey cement grout, slurry, oil, water glass, water etc.
3. Light weight, Small size, long endurance period, flexible movement. The pump can be landed on the groud and vertical shaft work platform, or fixed on the scooter in vertical shaft and level gateway orbit.
| Model | Rev. | Suction volume L/min | Max. grouting pressure Mpa | Motor KW |
| 2TGZ-60/210 | 1 gear | 16 | 21 | 7.5 |
| 2 gear | 19 | 18 | ||
| 3 gear | 36 | 9.5 | ||
| 4 gear | 60 | 6 | ||
| 2TGZ-90/140 | 1 gear | 24 | 14 | 7.5 |
| 2 gear | 29 | 12 | ||
| 3 gear | 54 | 6 | ||
| 4 gear | 90 | 4 | ||
| 2TGZ-120/105 | 1 gear | 32 | 10.5 | 11 |
| 2 gear | 38 | 9 | ||
| 3 gear | 72 | 5 | ||
| 4 gear | 120 | 3 |
1. Mechanical Grout Pump Machine of KEMING is widely used to grout for water blocking in tunnel, mining well, rock gangway or concrete sidewall.
2. For reinforcement of tunnel cracks, crushed or scattered rocks; anchor and injection..
3. Used as fire extinction grout pump in mining well or high-pressure oil pump.
