Product Details:
Payment & Shipping Terms:
|
| Product: | Mechanical Grout Pump Machine Of KEMING | Capacity: | 16-120L/min |
|---|---|---|---|
| Pressure: | 3-21Mpa | After-sales Service: | Online Support |
| High Light: | Mortar Mechanical Grout Pump,21Mpa Mechanical Grout Pump Machine,Mechanical Grout Pump For Conveying Cement Grout |
||

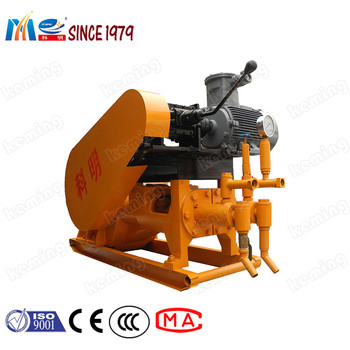

Mechanical Grout Pump Machine of KEMING has four gear shift for speed optional in every model.
1. Compact structure, high pressure, stable performance, for speed threshold, adjustable grout volume and grout pressure.Small size, light weight, convenient movement.
2. Light weight, Small size, long endurance period, flexible movement. The pump can be landed on the groud and vertical shaft work platform, or fixed on the scooter in vertical shaft and level gateway orbit.
3. The pump can convey cement grout, slurry, oil, water glass, water etc.
4. Convenient operation and maintenance.
1. Mechanical Grout Pump Machine of KEMING is widely used to grout for water blocking in tunnel, mining well, rock gangway or concrete sidewall.
2. For reinforcement of tunnel cracks, crushed or scattered rocks; anchor and injection..
3. For back-fill grout to prevent groud depression and landslide and correct skew buildings.
4. Used as fire extinction grout pump in mining well or high-pressure oil pump.
| Model | Rev. | Suction volume L/min | Max. grouting pressure Mpa | Motor KW |
| 2TGZ-60/210 | 1 gear | 16 | 21 | 7.5 |
| 2 gear | 19 | 18 | ||
| 3 gear | 36 | 9.5 | ||
| 4 gear | 60 | 6 | ||
| 2TGZ-90/140 | 1 gear | 24 | 14 | 7.5 |
| 2 gear | 29 | 12 | ||
| 3 gear | 54 | 6 | ||
| 4 gear | 90 | 4 | ||
| 2TGZ-120/105 | 1 gear | 32 | 10.5 | 11 |
| 2 gear | 38 | 9 | ||
| 3 gear | 72 | 5 | ||
| 4 gear | 120 | 3 |
