Product Details:
Payment & Shipping Terms:
|
Product: | KBW Series Slurry Mud Pump | Theory: | Piston Pump |
---|---|---|---|
Theoretic Output: | 50 L/min | After-sales Service Provided: | Online Video Support |
Highlight: | High Pressure Slurry Mud pump,KBW Series Slurry Mud Pump,Slurry Mud pump With Eight Gear Shift |

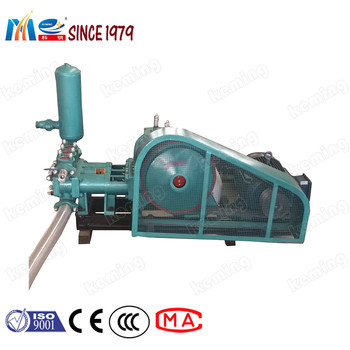

1. KBW Series Slurry Mud Pump is horizontal triplex grout pump with high stability and high pressure.
2. High quality pump parts, less wearing parts, long service life, low construction cost.
3. Fast suction-discharge speed, high pump efficiency.
4. Eight gear shift to adjust the flow, large output capacity, simple operation.
1. KBW Series Slurry Mud Pump is widely used for grouting and mud jacking in engineering construction.
2. KBW250 slurry pump have two cylinders with different diameters and four gear shifts.
Model | Capacity (L/min) | Pressure (Mpa) | Motor power (KW) |
KBW50 | 50 | 3 | 5.5 |
KBW60 | 60 | 6 | 7.5 |
KBW70 | 70 | 8 | 11 |
2ZBSY | 30 | 8 | 7.5 |
50 | 6.5 | ||
70 | 4 | ||
120 | 2.5 | ||
KBW150 | 150 | 1.8 | 7.5 |
90 | 3.2 | ||
58 | 4.8 | ||
38 | 7 | ||
125 | 2.3 | ||
72 | 4 | ||
47 | 6 | ||
32 | 7 | ||
KBW160 | 160 | 2.5 | 11 |
107 | 4 | ||
67 | 6.5 | ||
44 | 10 | ||
KBW250 | 250 | 2.5 | 15 |
145 | 4.5 | ||
90 | 6 | ||
42 | 6 | ||
KBW320 | 320 | 4 | 30 |
230 | 5 | ||
165 | 6 | ||
118 | 8 |
