Product Details:
Payment & Shipping Terms:
|

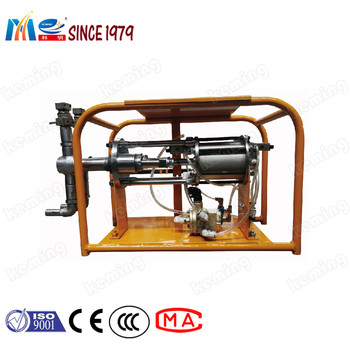

| Product Name: | KEMING Brand Pneumatic Grout Pump | Application: | Grout Water Cement Slurry Water Glass And Other |
|---|---|---|---|
| Inlet Dia.: | 25-38mm | After-sales Service Provided: | Video Technical Support |
| Certification: | CE, ISO | ||
| High Light: | Stable Reliable Performance Pneumatic Grout Pump,38mm Pneumatic Grout Pump,Pneumatic Grout Pump For Pre Grouting |
||
1. Advanced structure, high output pressure, large output capacity, high efficiency.
2. The pump adopts compressed air to transmit pressure signal, which forms close automatic control system to ensure reliable performance.
3. Reversing mechanism has automatic positioning function by air pressure with no "self-stop" phenomenon.
1. All cylinders work simultaneously to ensure even mixing and rated mixing ratio.
2. Suction valve and discharge valve can be quickly removed, easy maintenance.
3. Pneumatic transmission, strong anti-pollution ability, small size, light weight, easy movement.
1. The pump has single or double liquid grouting function.
2. It can work in inflammable, explosive, strong rediative, dusty sites and other bad environments with changeable temperature.
3. Slope protection grouting in civil engineering, mining tunnel construction etc.
4. It can work in inflammable, explosive, strong rediative, dusty sites and other bad environments with changeable temperature.
| Items | Parameters | |
| 2ZBQ-10/3 | ZBQ-25/2 | |
| Pressure(Mpa) | 0-3 | 0-5.5 |
| Output(L/min) | 0-14 | 0-30 |
| Working aire pressure(Mpa) | 0.2-0.63 | |
| Inlet dia. (mm) | 25 | 38 |
| Outlet dia.(mm) | 13 | 19 |
| Items | Parameters | ||||
| 2ZBQ-20/4 | 2ZBQ-10/10 | 2ZBQ-70/7 | 2ZBQ-30/30 | 2ZBQ-50/19 | |
| Output pressure Mpa | 4 | 10 | 7 | 30 | 19 |
| Output capacity L/min | 20 | 10 | 70 | 30 | 50 |
| Working air pressure Mpa | 0.2-0.63 | ||||
|
Outlet dia. mm |
25 | ||||
| Inlet dia. mm | 13 | 19 | |||
