| Product Name: | KEMING Pneumatic Grout Pump | Capacity: | 10-45L/min |
|---|---|---|---|
| Pressure: | 2-30Mpa | After-sales Service Provided: | Online Support |
| High Light: | Mortar Pneumatic Grout Pump,High Output Pneumatic Grout Pump,Transport Cement Slurry Pneumatic Grout Pump |
||

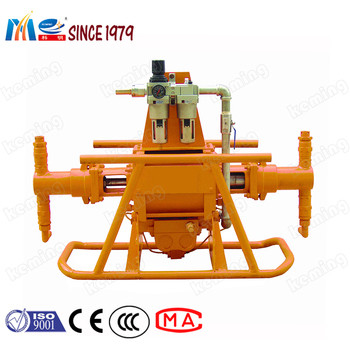

Pneumatic Grout Pump uses compressed air to transmit pressure signal.
1. Advanced structure, high output pressure, large output capacity, high efficiency.
2. The pump adopts compressed air to transmit pressure signal, which forms close automatic control system to ensure reliable performance.
3. All cylinders work simultaneously to ensure even mixing and rated mixing ratio.
5. Suction valve and discharge valve can be quickly removed, easy maintenance.
6. Pneumatic transmission, strong anti-pollution ability, light weight, easy movement.
1. The pump has single or double liquid grouting function.
2. It can be used to transport water, cement slurry, water glass or other less viscous and corrosive liquids.
3. It is widely used for water blocking and rock consolidation in coal mine, subway, hydro-power constructions, or for pre-grouting of working surface in deep well.
4. It can work in inflammable, explosive, strong rediative, dusty sites and other bad environments with changeable temperature.
| Items | Parameters | |
| 2ZBQ-10/3 | ZBQ-25/2 | |
| Pressure(Mpa) | 0-3 | 0-5.5 |
| Output(L/min) | 0-14 | 0-30 |
| Working aire pressure(Mpa) | 0.2-0.63 | |
| Inlet dia. (mm) | 25 | 38 |
| Outlet dia.(mm) | 13 | 19 |
| Items | Parameters | ||||
| 2ZBQ-20/4 | 2ZBQ-10/10 | 2ZBQ-70/7 | 2ZBQ-30/30 | 2ZBQ-50/19 | |
| Output pressure Mpa | 4 | 10 | 7 | 30 | 19 |
| Output capacity L/min | 20 | 10 | 70 | 30 | 50 |
| Working air pressure Mpa | 0.2-0.63 | ||||
|
Outlet dia. mm |
25 | ||||
| Inlet dia. mm | 13 | 19 | |||
