KBYS Series Hydraulic Mortar Pump For Slurry Injection In Pre Stressed Engineering

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

KBYS Series Hydraulic Mortar Pump For Slurry Injection In Pre Stressed Engineering

KBYS Series Hydraulic Mortar Pump For Slurry Injection In Pre Stressed Engineering
KBYS Series Hydraulic Mortar Pump For Slurry Injection In Pre Stressed Engineering KBYS Series Hydraulic Mortar Pump For Slurry Injection In Pre Stressed Engineering

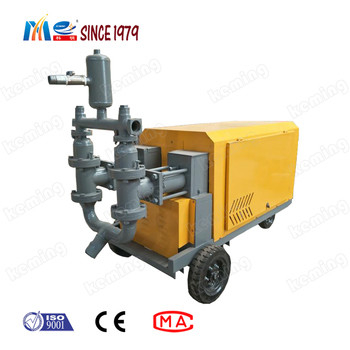

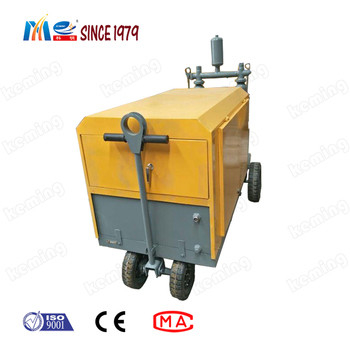

Large Image :  KBYS Series Hydraulic Mortar Pump For Slurry Injection In Pre Stressed Engineering

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: KBYS80/110-15 KBYS Series Hydraulic Mortar Pump
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product Name: KBYS80/110-15 KBYS Series Hydraulic Mortar Pump Hose Pump ID.: 51mm
Keyword: Hydraulic Mortar Pump Machine Application: Grout Concrete
After-sales Service Provided: Online Support
High Light:

Hydraulic Mortar Pump

,

Pre-Stressed Engineering Hydraulic Mortar Pump

,

Hydraulic Mortar Pump For Slurry Injection

Good performance KBYS Series Hydraulic Mortar Pump for slurry injection in pre-stressed engineering

KBYS80/110-15 KBYS Series Hydraulic Mortar Pump Introductions:

KBYS80/110-15 KBYS Series Hydraulic Mortar Pump is a kind of grounting pump that can grount and convey mortar or similar fluids materials.

KBYS80/110-15 KBYS Series Hydraulic Mortar Pump Features:

1. Adjustable grounting pressure within the rated pressure.

2. Perfect waterproof device.

3. Separated control valves.

4. Special suction-discharge valve and sealing structure.

5. Advanced monitoring system with double seismic pressure gauges.

KBYS80/110-15 KBYS Series Hydraulic Mortar Pump Application:

1. KBYS hydraulic mortar pump can be used for horizontal and vertical mortar delivering or large are a coating in construction engineering.

2.Filling cement grouting of road surface collapese in highway payment maintenance.

3. Dam reinforcement in water engineering.

4. Slope protection grouting in civil engineering, mining tunnel construction etc.

5. KBY Hydraulic Grout Pump is mainly applied in mining well, tunnel, hydraulic engineering subway, bridge and building construction, to grout for water blocking, fill in void or reinforce the crumbly strata.

KBYS80/110-15 KBYS Series Hydraulic Mortar Pump Technical Parameters:

Model KBYS Mortar Pump
Model KBYS80/80-11 KBYS80/110-15
Output 4-7m3/h 5-10m3/h
Pressure 0-6Mpa 0-8Mpa
Power 11kw 15kw
Max. particle size <5mm <5mm
Suction height 2m 2m





Model Pressure Mpa Output m3/h Motor kw Weight kg
KBY3/7-11 0 4.6 11 400
7 3
KBY8/7-18.5 0 13 18.5 600
7 2
KBY3/16-22 0 10.2 22 480
16 2
KBY2.1/21-22 0 2.7 22 480
21 0.6
KBY5/18-22 0 5.2 22 480
18 1.2
KBY3/21-30 0 4.9 30 510
21 3



KBYS Series Hydraulic Mortar Pump For Slurry Injection In Pre Stressed Engineering 0KBYS Series Hydraulic Mortar Pump For Slurry Injection In Pre Stressed Engineering 1
