Horizontal Mortar Delivery Hydraulic Grout Pump For Construction

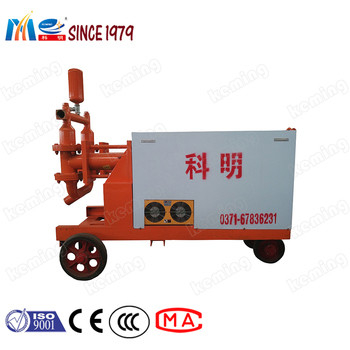

Large Image : Horizontal Mortar Delivery Hydraulic Grout Pump For Construction

Product Details:

Place of Origin:	CHINA
Brand Name:	KEMING
Certification:	CE, MA
Model Number:	KBYS80/80-11 Hydraulic Mortar Grout Pump

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Export Wooden Packing
Delivery Time:	5~8 Work Days
Payment Terms:	T/T, L/C
Supply Ability:	100 Sets/Per Month

Contact Now

Detailed Product Description

Product Name:

Hydraulic Mortar Grout Pump

Capacity:

0.6-3m3/h

Pressure:

7-21Mpa

After-sales Service Provided:

Online Support

Highlight:

Delivery Hydraulic Grout Pump

Hydraulic Mortar Grout Pump For Construction

Horizontal Hydraulic Grout Pump

Horizontal and vertical mortar delivery Hydraulic Grout Pump for construction use

Hydraulic Mortar Grout Pump Introductions:

Hydraulic Grout Pump includes KBY series and KBYSseries, which are a kind of grounting pump that can grount and convey mortar or similar fluids materials.

Hydraulic Mortar Grout Pump Features:

1. Adjustable grounting pressure within the rated pressure.

2. Perfect waterproof device.

3. Single or double fluid grounting.

4. Advanced monitoring system with double seismic pressure gauges.

Hydraulic Mortar Grout Pump Application:

1. KBYS hydraulic mortar pump can be used for horizontal and vertical mortar delivering or large are a coating in construction engineering.

2.Filling cement grouting of road surface collapese in highway payment maintenance.

3. Slurry injection expansion in pre-stressed engineering.

4. Slope protection grouting in civil engineering, mining tunnel construction etc.

Hydraulic Mortar Grout Pump Technical Parameters:

Model	KBYS Mortar Pump
Model	KBYS80/80-11	KBYS80/110-15
Output	4-7m3/h	5-10m3/h
Pressure	0-6Mpa	0-8Mpa
Power	11kw	15kw
Max. particle size	<5mm	<5mm
Suction height	2m	2m
