Product Details:
Payment & Shipping Terms:
|
| Product Name: | KBY3/7-11 KEMING Hydraulic Grout Pump | Motor Power: | 11-30kw |
|---|---|---|---|
| Weight: | 400-600kg | After-sales Service Provided: | Online Support |
| High Light: | sealing structure Hydraulic Grout Pump,11kw Hydraulic Grout Pump,Hydraulic Grout Pump With Waterproof Device |
||

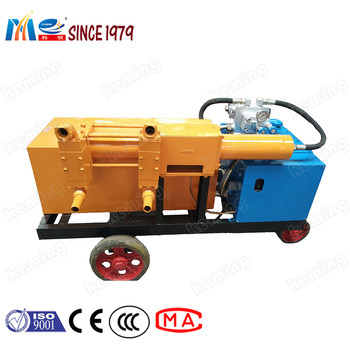

KEMING Hydraulic Grout Pump includes KBY series and KBYSseries, which are a kind of grounting pump that can grount and convey mortar or similar fluids materials.
1. Adjustable grounting pressure within the rated pressure.
2. Perfect waterproof device.
3. Single or double fluid grounting.
4. Special suction-discharge valve and sealing structure.
5. Advanced monitoring system with double seismic pressure gauges.
1. KEMING Hydraulic Grout Pump is mainly applied in mining well, tunnel, hydraulic engineering subway, bridge and building construction, to grout for water blocking, fill in void or reinforce the crumbly strata.
2. KBYS hydraulic mortar pump can be used for horizontal and vertical mortar delivering or large are a coating in construction engineering.
3.Filling cement grouting of road surface collapese in highway payment maintenance.
4. Dam reinforcement in water engineering.
5.Slurry injection expansion in pre-stressed engineering.
6. Slope protection grouting in civil engineering, mining tunnel construction etc.
| Model | Pressure Mpa | Output m3/h | Motor kw | Weight kg |
| KBY3/7-11 | 0 | 4.6 | 11 | 400 |
| 7 | 3 | |||
| KBY8/7-18.5 | 0 | 13 | 18.5 | 600 |
| 7 | 2 | |||
| KBY3/16-22 | 0 | 10.2 | 22 | 480 |
| 16 | 2 | |||
| KBY2.1/21-22 | 0 | 2.7 | 22 | 480 |
| 21 | 0.6 | |||
| KBY5/18-22 | 0 | 5.2 | 22 | 480 |
| 18 | 1.2 | |||
| KBY3/21-30 | 0 | 4.9 | 30 | 510 |
| 21 | 3 |
