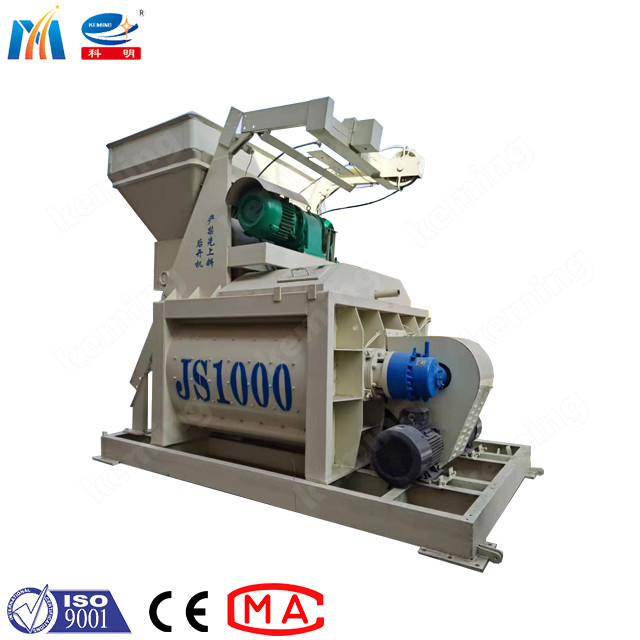

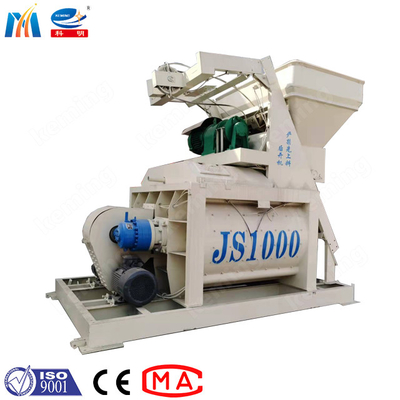

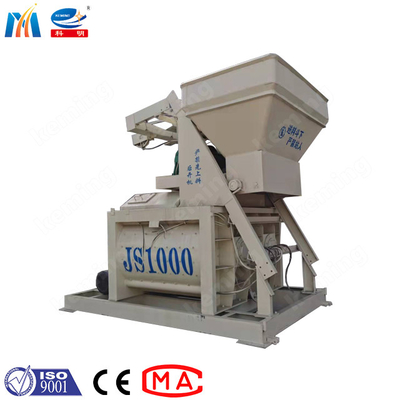

HZS 35 Concrete Batching Plant JS 1000 Concrete Mixer Machine With Three Or Four Silo
Introduction:
HZS 35 concrete batching plant is a simple concrete batching plant equipped with JS1000 type mixing host. The batching plant adopts advanced metering technology, with high mixing efficiency and fast metering speed. It can be widely used in highway bridges, small and medium-sized construction sites and prefabricated parts factory, etc.
Features:
1. Modular design, easy to disassemble
HZS25 concrete batching plant adopts combined structure and unit modularization, which is very convenient for installation and relocation.
2. High quality stirring
The host of HZS25 concrete batching plant adopts JS500 twin-shaft forced concrete mixer, which has good mixing quality and high efficiency.
3. Accurate measurement
The aggregate batching adopts PLD1200 concrete batching machine, which has accurate measurement and high production efficiency. The powder and water are measured by electronic scales, and the batching accuracy is high.
Specification :
|
Model
|
JS500
|
JS750
|
|
Discharging capacity (L)
|
500
|
750
|
|
Charging capacity (L)
|
800
|
1200
|
|
Productivity(m3/h)
|
< 25
|
< 35
|
|
Max size of aggregate(mm)
|
< 40/50 |
< 40/50
|
|
Mixing blade
|
2x7
|
2x7
|
|
Rev of drum(r/min)
|
31
|
31
|
|
Stirring motor(kW)
|
18.5
|
30
|
|
Lifting motor(kW)
|
5.5
|
7.5
|
|
Water pump motor(kW)
|
1.1
|
1.5
|
|
Dimension L×B×H (mm)
|
4461x3050x4180
|
4951x3650x6225
|
|
2 |

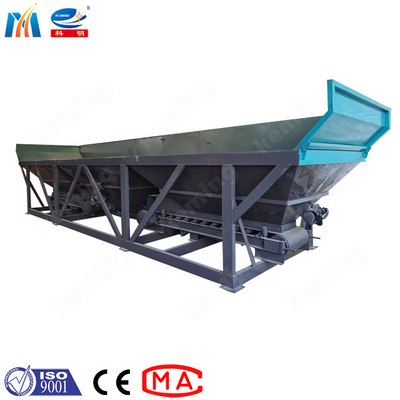

PLD-1200 Three bin batching
|
Batching machine belt conveyor | Belt width 500mm | |
| Steel structure | ||||
| transmission motor | Belt conveying for aggregate, cement, sand | 3Kw | ||
| transmission motor | Conveying to the mixer hopper | 4Kw | ||
| Measure hopper | Volume 1.2m3 | |||
| Storage bin | Volume 4m3 | |||
| outrigger | ||||
| Measure sensor | 1000Kg |
Certificate:
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of
Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Company introduction:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility:
Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
