Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Home ProductsCement Grouting Pump

Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

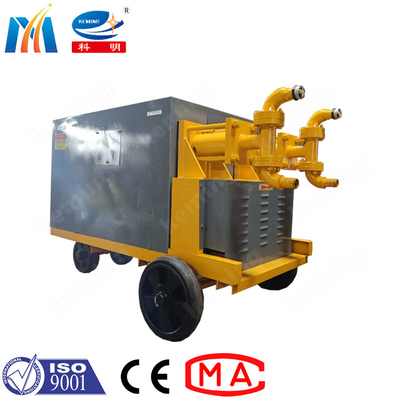

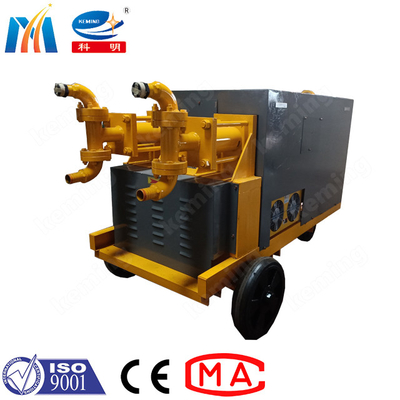

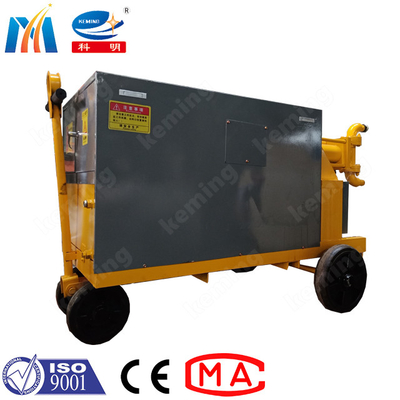

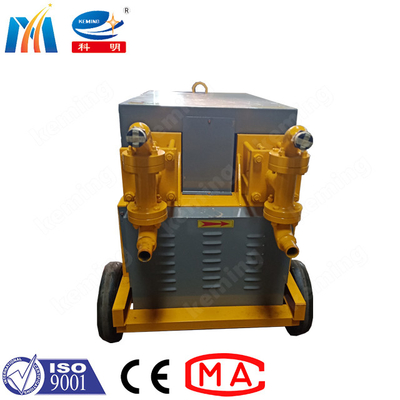

Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction

Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction
Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction

Large Image :  Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction

Product Details:
Place of Origin: China(mainland)
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KBY series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1000-4000USD
Packaging Details: wooden box
Delivery Time: 5-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 20 sets per month
Detailed Product Description
Weight: Vary With The Model Condition: New
Dimension(l*w*h): Vary With The Model Warranty: 1 Year
After-sales Service Provided: Instruction Book, Online Support Certification: CE, ISO, MA
Color: Yellow, Customized Application: Grouting Project
Voltage: Customized
High Light:

Double Liquids Cement Grouting Pump

,

tank type Hydraulic Cement Grouting Pump

,

Cement Grouting Pump For Mine Construction

KBY Hydraulic Double liquids Cement Grouting Pump Grouting operation



Application:



The double-cylinder double-liquid grouting pump (hereinafter referred to as the double-liquid pump) is mainly used for tunnel excavation and maintenance, road, bridge, mine construction and high-rise building foundation treatment projects and various grouting construction projects.



Grouting operation:

Grouting is the central link of the entire chemical grouting, which must be carried out after all preparations are completed. Before grouting, the division of labor should be organized in an organized manner, and the positions should be fixed. In particular, full-time and skilled personnel are required to operate.
(1) Carry out a comprehensive inspection of the entire system before grouting, and grouting can only be done when the grouting machine is running normally and the pipeline is unobstructed.
(2) The vertical joints are generally grouted from bottom to top, and the horizontal joints are grouted from one end to the other end or from both ends to the middle; for concentrated water leakage, the holes with the largest leakage should be grouted first.
Grouting end
When the pressure is relatively stable, continue grouting for 1-2 minutes to end the grouting, and dismantle the pipeline to prepare for cleaning.
Seal the hole
When there is no water leakage after inspection, remove the grouting head and fill the hole with cement mortar and other materials.





Features:

1. Adjustable grouting pressure within the rated pressure.
2. Perfect waterproof device.
3. Separated control valves.
4. Single or double fluid grouting.
5. Special suction-discharge valve and sealing structure.
6. Advanced monitoring system with double seismic pressure gauges. 7.Small size, light weight, flexible movement, reliable performance.



Specification:

Model 80/80(oil cylinder diameter/material cylinder diameter) 80/110(oil cylinder diameter/material cylinder diameter
Structure type tank type/basic type Tank type/basic type
material cylinder diameter(mm) 80 110
Motor power(KW) 7.5 11 15 11 15
(matched)gear pump model CB-FC40 CB-FC40
Bearing pressure of the gear pump MPa 0~16 0~16
Discharge slurry volume(m³/h) 4~5 4~5 4~5 5~7 5~7
Outlet pressure(MPa) 0~6 0~10 0~12 0~5 0~6
Noise power level(dB(A)) 110 110 110 110 110
Outlet diameter(mm) 32 32 32 32 32
Suction port diameter(mm) 38 38 38 38 38
Material cylinder Qty. 2 2 2 2 2
Conveying distance(m) Vertical 80;horizontal 200 vertical100;horizontal 300 Vertical 60;horizontal 200 Vertical 80;horizontal 200
Aggregate size≤(mm) 3 3 3 3 3
Suction height≤(m) 2 2 2 2 2
Dimension (mm) Tank type 1870×900×1062 1870×900×1062
Basic type 1700×900×1062 1700×900×1062
Oil tank volume(L) 45 45 45 45 45
Weight (Kg) 480 500 520 530 550

Related machines:

Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

Air driven grout pump:

Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 0

Shotcrete robot:

Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 1

Certification:

In March 1979, our company was established in Zhengzhou, Henan.

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.

In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.

In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.

In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.

In October 2016, “KEMING” series products have been certified by CE Certification.



Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 2Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 3Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 4

Why choose us:

Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 5

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.


Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 6Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 7Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 8

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 9Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 10

Exhibition:

Bauma Shanghai 2018

Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 11Tank Type Hydraulic Double Liquids Cement Grouting Pump For Mine Construction 12

FAQ:

1. Q:How to pay for this order?

A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)

2. Q:How to place an order?

A:Both online order and offline order are acceptable.

3. Q:How about the package?

A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery. 4. Q:What is the lead time?

A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.

5. Q:What should we do if there are some problems with the machine?

A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.

6. Q:Do i need technical skills to operate this machine?

A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.



If there are any other questions about our machines and price, pls feel free to contact us!
