Product Details:
Payment & Shipping Terms:
|
| Product Name: | KH32 Industrial Hose Pump | Capacity: | 15~30 M3/h |
|---|---|---|---|
| Hose ID.: | 76mm | Rated Pressure: | 1.0MPa |
| Max. Aggregate Size: | 15mm | After Warranty Service: | Online Support |
| High Light: | Delivery Of Fibers Dyes Hose Pump,cycloidal reducer Industrial Hose Pump,industrial Hose Pump For Textile Industry |
||

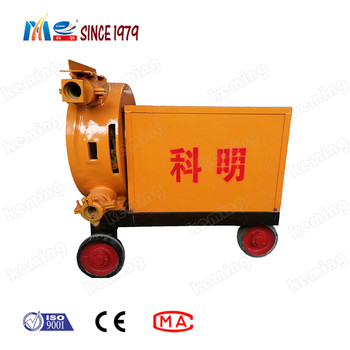

Industrial Hose Pump is the very mature products with different kinds of standard models and many special models designed as the customer’s request. The working pressure ranges from 0.6~1.5 MPa, and output capacity from 0.01~50 m3/h.
1. No valve operation, no back flow, stable pumping flow, low fault rate.
2. High vacuum, strong self-suction capacity.
3. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
4. Convenient maintenance, less wearable parts (except extruded hose).
1. Construction --- pump and spray of cement, mortar, plaster, slurry, fine aggregates concrete ...
2. Mining industry --- delivery of mining slurry, gold pulp, tailing, thick pulp, filling materials...
3. Water treatment --- delivery of water, sewage, thick slurry, precipitated sludge...
4. Pharmacy --- delivery of drug liquids, harmful and corrosive materials...
5. Textile industry --- delivery of fibers, dyes, additives...
| Model | Rated output m3/h | Rated pressure | Rated power kw | Max. aggregate size mm | Max. suction dist. m |
| KH15 | 0.3 | 0.6 | 0.55 | 2 | 2 |
| KH25 | 0.8-1.3 | 1.5 | 1.1/1.5 | 3 | 3 |
| KH32 | 1.3-1.8 | 1.5 | 2.2 | 3 | 4 |
| KH40 | 2.0-3.5 | 1.5 | 2.2/4 | 4 | 4 |
| KH50 | 4.0-8.0 | 1.5 | 4/5.5/7.5 | 5 | 5 |
| KH65 | 9.0-15.0 | 1.0 | 7.5/11 | 6 | 5 |
| KH75 | 15.0-30.0 | 1.0 | 11/15 | 6 | 5 |
| KH90 | 30.0-40.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
| KH100 | 40.0-50.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
| KH130 | 50.0-70.0 | 1.0 | 18/22 | 6/10(soft) | 5 |
| KH150 | 70.0-80.0 | 1.0 | 22/30 | 6/10(soft) | 5 |
| KH200 | 100.0-110.0 | 1.0 | 30/37 | 6/15(soft) | 5 |
