Product Name: | KEMING KZW Mortar Spraying Machine | Max. Mortar Ratio: | 1:3 |
---|---|---|---|
Conveying Pipe ID.: | 25/32mm | Max. Delivery Distance: | 15/10m |
Theory: | Screw Pump | After-sales Service Provided: | Online Support |
Selling Point: | Four-speed Optional | Keyword: | Cement Mortar Spraying Machine |
High Light: | Screw pump Mortar Spraying Machin,Concrete Mortar Spraying Machine,Four Speed Optional Spraying Machine |

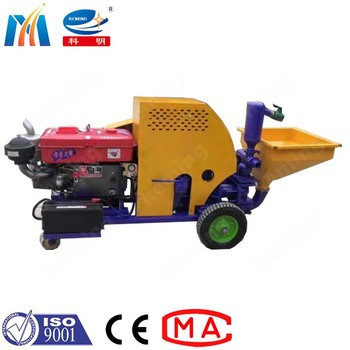

KEMING KZW Mortar Spraying Machine is a double cylinder four-speed plunger type equipment, it is based on years of experience and some advanced foreign technology. It is more than the life of various screw type spraying equipment used in the market. To be long, the speed is faster than the similar machine.
KEMING KZW Mortar Spraying Machine is suitable for dry mixed mortar, thermal insulation mortar, masonry mortar, reinforced mortar, self-leveling mortar spraying and conveying, the machine uses four-speed variable pressure ontrol protection mechanism to achieve remote control.
Technical parameters | High speed 1 | High speed 2 | High speed 3 | High speed 4 |
Max. conveying capacity | 6m3/h | 4m3/h | 3m3/h | 2m3/h |
Horizontal conveying dist. | 150m | 100m | 80m | 80m |
Vertical conveying dist. | 60m | 40m | 30m | 30m |
Maximum mortar ratio | 1:3 | |||
Displacement of air compressor | 0.36m3/min | |||
Air compressor power | 3kw | |||
Total weight | 500kg | |||
Outline size | 2000*850*950mm | |||
Main engine power | 11kw |
