Product Details:
Payment & Shipping Terms:
|
| Product Name: | KEMING Mortar Spraying Machine | Engine: | Electric And Diesel Engine |
|---|---|---|---|
| Main Engine Power: | 11kw | Air Compressor: | 0.36 M3/min |
| Max. Aggregate Size: | 4 Mm | After-sales Service Provided: | Online Support |
| High Light: | Double Cylinder Stucco Sprayer Machine,Electric Diesel Engine Spraying Machine,11kw Spray Plaster Machine |
||

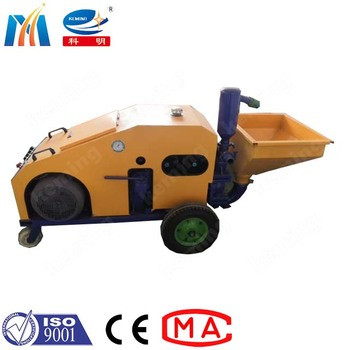

KZW mortar spraying machine is a double cylinder four-speed plunger type equipment, it is based on years of experience and some advanced foreign technology. It is more than the life of various screw type spraying equipment used in the market. To be long, the speed is faster than the similar machine.
KZW mortar spraying machine is a double cylinder four-speed plunger type equipment, it is based on years of experience and some advanced foreign technology. It is more than the life of various screw type spraying equipment used in the market. To be long, the speed is faster than the similar machine.
| Technical parameters | High speed 1 | High speed 2 | High speed 3 | High speed 4 |
| Max. conveying capacity | 6m3/h | 4m3/h | 3m3/h | 2m3/h |
| Horizontal conveying dist. | 150m | 100m | 80m | 80m |
| Vertical conveying dist. | 60m | 40m | 30m | 30m |
| Maximum mortar ratio | 1:3 | |||
| Displacement of air compressor | 0.36m3/min | |||
| Air compressor power | 3kw | |||
| Total weight | 500kg | |||
| Outline size | 2000*850*950mm | |||
| Main engine power | 11kw | |||
