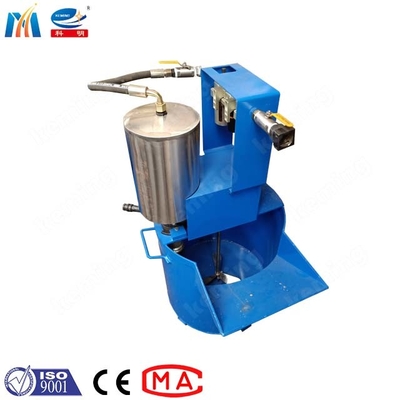

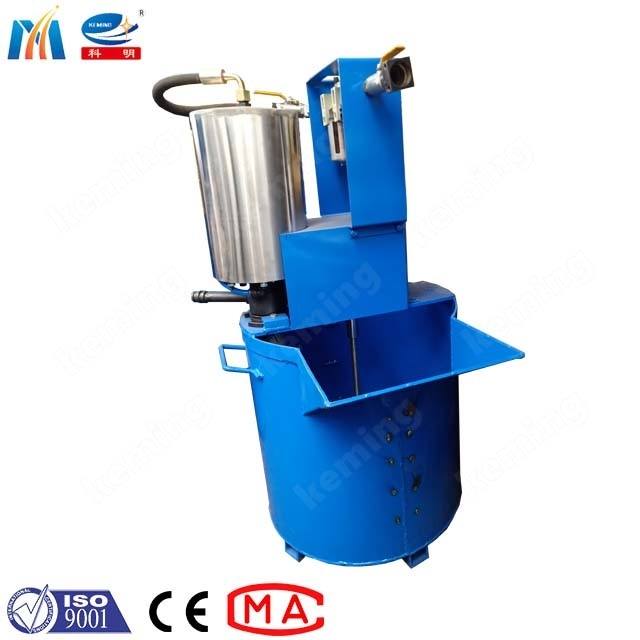

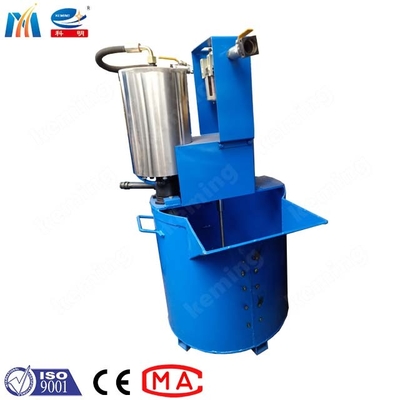

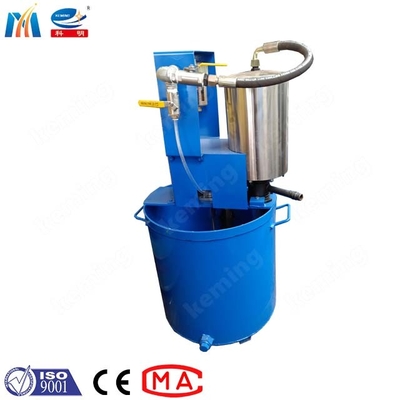

ZBQ-25/2 Air Driven Grout Pump Cement Slurry Pumping And Grouting With Mixing Blade
Products introduction:
The air driven grout pump is mainly composed of: grouting pump, agitator, mixing barrel, inlet pressure gauge, slurry outlet slurry pressure gauge, special-shaped pipe fittings, regulating valve, quick connector, lubricator and other auxiliary components.
|
item
|
unit
|
parameter
|
|
air pressure
|
MPa
|
0.2~0.63
|
|
discharge slurry pressure
|
MPa
|
0~5.5
|
|
discharge slurry capacity
|
L /min
|
0~30
|
|
slurry cylinder diameter
|
mm
|
50
|
|
piston stroke
|
mm
|
97
|
|
air consumption
|
m³/min
|
≤2
|
|
noise sound pressure level
|
dB(A)
|
≤85
|
|
volume efficiency
|
/
|
90%
|
|
whole machine weight
|
kg
|
50
|
|
dimension
|
mm
|
720×710×1050(±20)
|
|
Applicable media
|
|
cement slurry,emulsion,water,oil
|
