Good Performance KEMING Mortar Spraying Machine Using Horizontal Structure

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Good Performance KEMING Mortar Spraying Machine Using Horizontal Structure

Good Performance KEMING Mortar Spraying Machine Using Horizontal Structure
Good Performance KEMING Mortar Spraying Machine Using Horizontal Structure

Large Image :  Good Performance KEMING Mortar Spraying Machine Using Horizontal Structure

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE
Model Number: KLW150 Mortar Spraying Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: 10~15 work days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product Name: Mortar Spraying Machine Electricity: Single Phase Or Three Phase
Conveying Pipe ID.: 25/32mm Max. Delivery Distance: 15/10m
Theory: Screw Pump After-sales Service Provided: Video Technical Support
High Light:

Horizontal Mortar Spraying Machine

,

12hp Plaster Pump Machine

,

Screw Pump Stucco Sprayer Machine

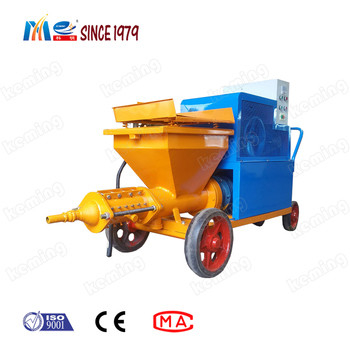

Good performance KEMING mortar spraying machine using horizontal structure

Mortar Spraying Machine Intriduction:

Compared with traditional manual plastering and rendering machine, KEMING Mortar Spraying Machine has the following advantages:

(1) High efficiency. The machine can spray 120-180 square meters per hour, which can effectively shorten the construction period and save costs.

(2) Evenly spraying performance, no fly ash and dust fall. It can save water and materials more than 20% of the costs.

(3) Free spraying on the wall, roof, internal and external corners. It can improve work efficiency and save costs.

KEMING Mortar Spraying Machine Application:

KEMING Mortar Spraying Machine is a new developed high-pressure screw type cement mortar plastering machine. Due to its advanced technology, convenient operation and maintenance, this plastering machine is widely used, as following:

(1) Pressure grouting for reservoir, hydropower, dam, port, dwarf etc;

(2) Basic treatment and reinforcement grouting of soft foundation;

(3) Backfill grouting or rock bolting for tunnel, subway,mining well etc.;

(4) Slurry circulation and mortar backfill in deep well construction of ground-source heat pump;

(5) Building mortar conveying for floor, masonry or plastering;

(6) Conveying and spraying of cement slurry, commercial mortar or equivalent mortar etc.

KEMING Mortar Spraying Machine Parameter:

Model Spraying distance Capacity Power Aggregate size Air compressor
KLW120 10m 100-120m2/h 4kw 4mm 2.2kw(0.3m3/min)
KLW120D 10m 100-120m2/h 12hp 4mm 0.3m3/min
KLW150 15m 120-150m2/h 5.5kw 5mm 3kw(0.36m3/min)
KLW150D 15m 140-160m2/h 15hp 5mm 0.36m3/min
KLW180 20m 150-180m2/h 7.5kw 6mm 3kw(0.4m3/min)
KLW180D 20m 150-180m2/h 18hp 6mm 0.4m3/min
KLW180J 20m 150-180m2/h 7.5kw 6mm 3kw(0.36m3/min)
