Product Details:
Payment & Shipping Terms:
|

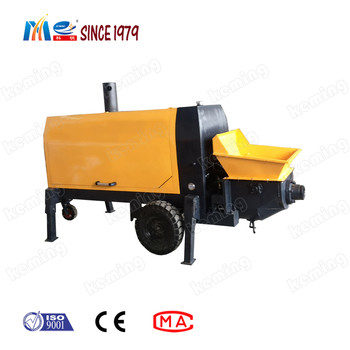

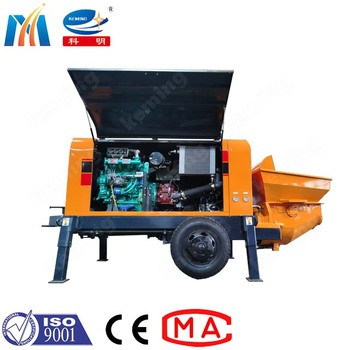

Product Name: | KEMING KMB Concrete Grout Pump | Driven Mode: | Electric And Diesel Motor |
---|---|---|---|
Power: | 11-55kw | Max. Output Pressure: | 3~13 MPa |
Application: | Pump Concrete | After-sales Service Provided: | Online Support |
Brand: | HENAN KEMING | ||
High Light: | 55kw Concrete Grout Pump,Concrete Grout Pump 50m3/H,Overbroken Tunnels Concrete Grout Pump |
1. Continuously adjustable flux and accelerator adding volume.
2. Flexible movement, convenient operation and maintenance.
3. long spraying distance: 300m horizontally and 100/80m vertically.
1. Pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
2. Keming concrete grout pump can convey fine aggregate concrete and mortar for high buildings.
3. grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
Items | Unit | Parameters | ||||||
KMB-50 | KMB-40 | KMB-30 | KMB-20 | KMB-10 | KMB-8 | |||
Capacity | m3/h | 50(30-34) | 40(25-30) | 30(20-25) | 20(15) | 10(8) | 8(6) | |
Max. aggregate size | mm | 40 | 30 | 20 | 20 | 25 | 15 | |
Delivery pipe | mm | DN150/DN125 | DN125/DN100 | DN125/DN100 | DN125/DN100 | DN100/DN80 | DN80 | |
Max. dist. | horizontally | m | 300 | 300 | 300 | 200 | 150 | 50 |
vertically | m | 100/80 | 100/80 | 80/60 | 40 | 60 | 20 | |
Diesel engine | kw | 84 | 56 | 44 | 40 | 40 | NONE | |
Main oil pump | 140 double | 140/112 double | 112/80 double | 80 | 50 | 40 | ||
Cylinder diameter | 200 | 160/180 | 140 | 120 | 140 | 120 | ||
Motor power | kw | 55 | 45 | 37 | 22 | 22 | 15/11 | |
Output pressure | Mpa | 8-13 | 8-13 | 6-8 | 5-8 | 5-8 | 3-5 |
