Product Details:
Payment & Shipping Terms:
|
Product Name: | Industrial Squeeze Hose | Resistance: | High Resistance |
---|---|---|---|
Key Words: | Industrial Squeeze Hose | Brand: | HENAN KEMING |
Packing: | Standard Exported Packaging | Pressure: | High Pressure Resistance |
After-sales Service Provided: | Video Technical Support | ||
High Light: | Abrasives Industrial Squeeze Hose,OD 100mm Industrial Squeeze Hose,1.0mpa Industrial Squeeze Hose |

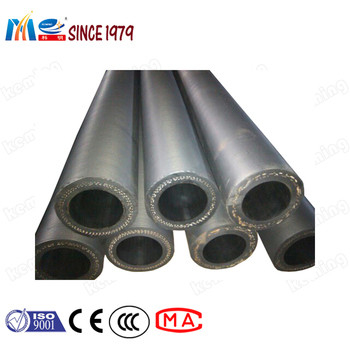

Industrial squeeze hose is suitable for corrosive, abrasives, shear sensitive fluids, high viscosity and density fluids.
Industrial squeeze hose is suitable for corrosive, abrasives, shear sensitive fluids, high viscosity and density fluids.
Standard model | ID(mm) | OD(mm) | Length(mm) | Pressure(mpa) |
KP100 |
102 | 148 | 2500 | |
RGB90 | 89 | 135 | 2200 | |
RGB75 | 76 | 116 | 1900 | 1.0 |
Import | 65 | 101 | 2340 | 1.0 |
RGB65 | 65 | 100 | 1750 | 1.0 |
RGB60 | 59 | 90 | 1570 | |
RGB50 | 51 | 84 | 1360 | 1.0 |
RGB40 | 38 | 66 | 1150 | 1.0 |
RGB32 | 32 | 60 | 1030 | 1.0 |
RGB25 | 25 | 49±1 | 900 | |
RGB20 | 20 | 42±1 | 720 | |
φ16 |
16 | 36 | 715 | |
φ10 |
10 | 24 | 520 |
