Product Details:
Payment & Shipping Terms:
|
| Model: | KH Series | Warranty: | 12month |
|---|---|---|---|
| Color: | Customized | Capacity: | 0.3-80 M3/h |
| Max Aggregate Size: | 2-10mm | Power Engine: | Diesel Engine |
| Name: | Hose Pump | Certificate: | CE, ISO, MA |
| High Light: | Extruding Rubber Industrial Hose Pump,1MPa Extruding Industrial Hose Pump,80m3/H Industrial Hose Pump |
||

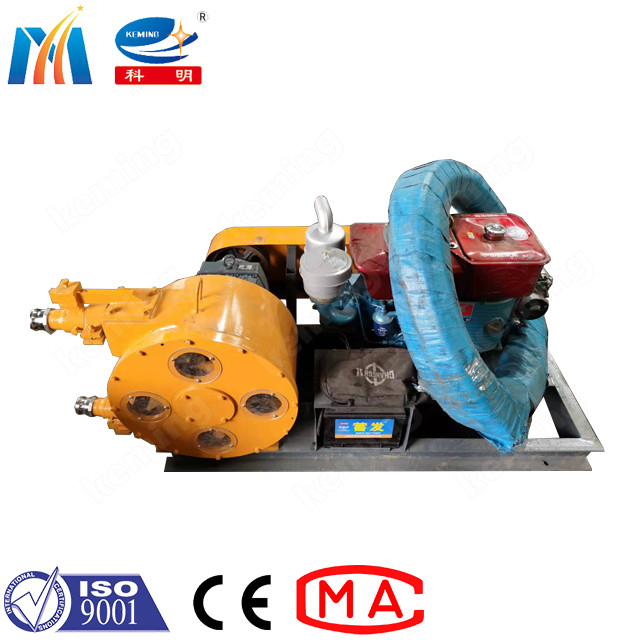

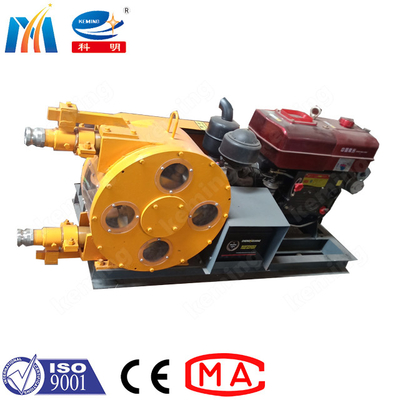

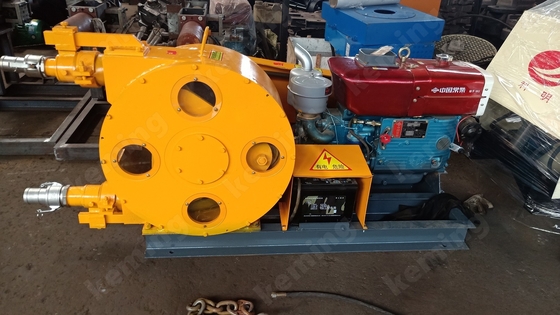

Diesel Engine 1 MPa Extruding Rubber Pump Industrial Hose Pump
Application:
The hose pump can be used for various mining or chemical or other areas.
1. Construction — pump and spray of cement, mortar, plaster, slurry, fine aggregates concrete …
2. Mining industry — delivery of mining slurry, gold pulp, tailing, thick pulp, filling materials…
3. Water treatment — delivery of water, sewage, thick slurry, precipitated sludge…
4. Pharmacy — delivery of drug liquids, harmful and corrosive materials…
5. Textile industry — delivery of fibers, dyes, additives…
6. Paper making and printing industry — delivery of paper slurry, ink, glue…
7. Ceramic and glass industry — delivery of glaze, slurry, pigment…
8. Brewing industry — delivery of beer or wine, treatment of wine sediment…
9. Food industry — delivery of beverage, cream, juice, milk, chocolate, addictive…
10. Chemical industry — delivery of corrosive, acid, alkali, phosphate liquid, inorganic materials, suspending liquid, electroplate liquid, precipitate …
11. OEM: customized pump manufacture for industrial corollary equipment.
The characteristics of hose pumps are as follows:
a) There is no need to worry about leakage of the sealing part because there are no sealing parts such as mechanical seals and gland packing.
b) Since there is no sealing part, it can be run dry and used as a vacuum pump.
c) Because the fluid only passes through the special hose, the impeller, rotor, cylinder and other operating parts do not touch the liquid, and do not stir and foam, so it can be directly transported in the original state.
d) Regardless of the direction of discharge or suction, it can be conveyed. Therefore, the residual fluid in the discharge pipe can be easily discharged by reversing.
e) The parts in contact with liquid are only rubber, which has good abrasion resistance and runs at low speed, so it is suitable for the transportation of slurry.
Data:
| model | rated output m3/h | rated pressure MPa | rated power kw | max.aggregate size mm | max.suction dist. m |
| KH-15 | 0.3 | 0.6 | 0.55 | 2 | 2 |
| KH-25 | 0.8-1.3 | 1.5 | 1.1/1.5 | 3 | 3 |
| KH-32 | 1.3-1.8 | 1.5 | 2.2 | 3 | 4 |
| KH-40 | 2.0-3.5 | 1.5 | 2.2/4 | 4 | 4 |
| KH-50 | 4.0-8.0 | 1.5 | 4/5.5 7.5 | 5 | 5 |
| KH-65 | 9.0-15.0 | 1.0 | 7.5/11 | 6 | 5 |
| KH-75 | 15.0-30.0 | 1.0 | 11/15 | 6 | 5 |
| KH-90 | 30.0-40.0 | 1.0 | 15/18 | 8 | 5 |
| KH-100 | 40.0-50.0 | 1.0 | 15/18 | 8 | 5 |
| KH-130 | 50.0-70.0 | 1.0 | 18/22 | 10 | 5 |
| KH-150 | 70.0-80.0 | 1.0 | 22/30 | 10 | 5 |
Spare parts:
Certification:
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Why choose us:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
