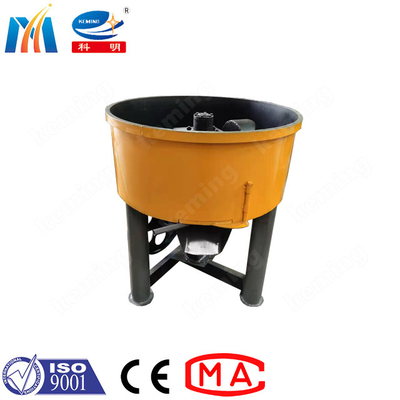

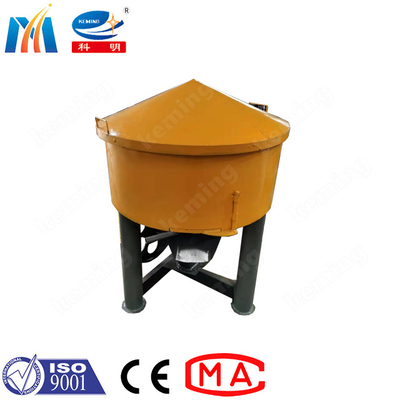

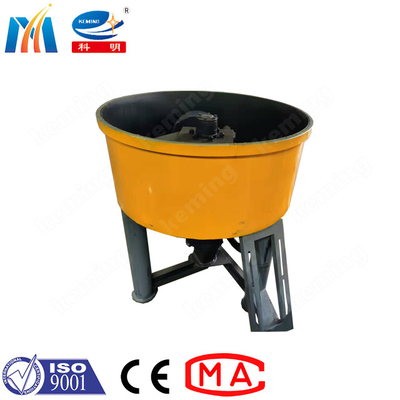

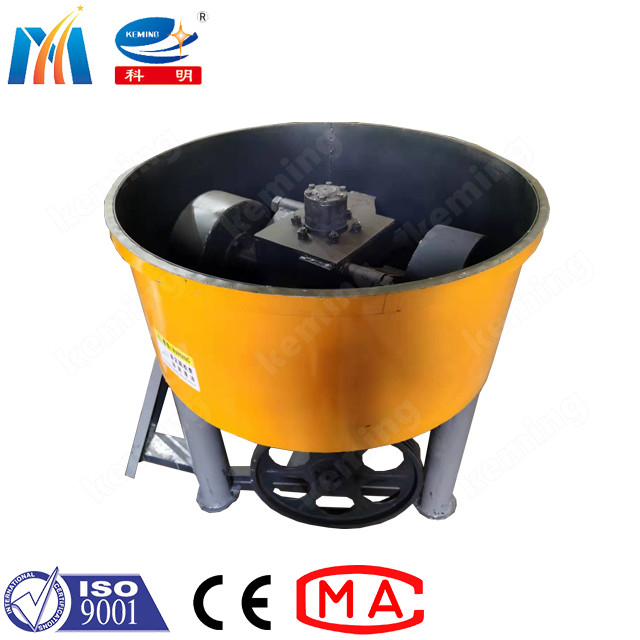

Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine

Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine
Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine

Large Image :  Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine

Product Details:
Place of Origin: Zhengzhou
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KJW series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Supply Ability: 20 sets per month
Detailed Product Description
Condition: New After-sales Service Provided: Instruction Book
Discharge Way: Automatic Warranty: 1 Year
Color: Customized Application: Farmer Site
Engine: Electrical Product Name: Grain Pan Mixer
High Light:

Grain Grinding Pan Mixer Machine

,

500L Grain Mixing Machine

,

8m3/H Grain Mixing Machine

Electrical Grain Grinding And Mixing Machine Pan Mixer 500L Simplify Grain Mixing Machine

Products introduction:


The working principle of pan mixer is that it mixes material while rotating in clockwise direction,and discharging material while roating in anticlockwise direction.
The pan mixer adopts motorized discharge and can be used with dump trucks. It is an ideal machine for various grain mixing and grinding sites.


Product description: This pan mixer has compact structure, simple structure, light weight, small volume, flexible operation, fast discharge and transfer Convenience, short mixing time, high rate, etc., charging, mixing and discharging are carried out periodically.


The grain grinding and mixing pan mixer have two steel wheels rotate when working, which could grinding the grain material more smaller size, even powder. What's more, it have mixing blade to mixing the material more evenly.



The design of the pan mixer is very ingenious. It uses a novel rotor structure to adjust the gap between the rotor and the pan body, the pan bottom to be very small, or even close to zero.

This effectively prevents the residue of materials. For the driven engine, can use electrical or diesel engine.

The grain grinding and mixing pan mixer is a very good helper for farmer.



Specification:



Model JW250 JW350 JW500 JW750 JW1000 JW1500 JW3000
Volume 250L 350L 500L 750L 1000L 1500L 3000L
Productivity(m3/h) 6--8 9--12 15-18 18-20 25-30 30-40 30-60
Rotary speed(r/min) 19 21 40 40 21 21 21
Power(KW) 5.5 5.5 7.5 11 13 15 22

Dimension(M)
(diameter*height)

Φ1.1×1.1 Φ1.2×1.4 Φ1.3×1.4 Φ1.5×1.4 Φ1.8×1.4 Φ1.8×1.6 Φ2.5×1.8


Certification:
In March 1979, our company was established in Zhengzhou, Henan.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification. In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine 0Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine 1Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine 2

Why choose us:
Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine 3
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine 4
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine 5Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine 6Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine 7
Exhibition:
Bauma Shanghai 2018
Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine 8Electrical Grain Grinding Pan Mixer Machine 500L Grain Mixing Machine 9
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
If you have any other questions, pls feel free to contact us will choose the most suitable machines for you!
