Product Details:
Payment & Shipping Terms:
|
| Color: | Any Is Ok | Feature: | Good Performance |
|---|---|---|---|
| Custom Order: | Accept | Weight: | Vary With The Model |
| Warranty: | 1 Year | Product Name: | Cement Foaming Machine |
| High Light: | 10m3/H Single Phase Foam Concrete Pump,Foam Concrete Pump 7.5kw,Air Entraining Foam Concrete Pump |
||

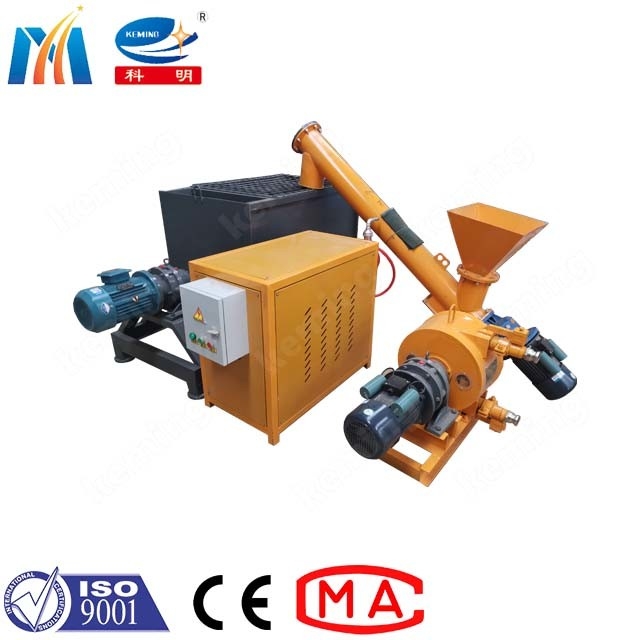

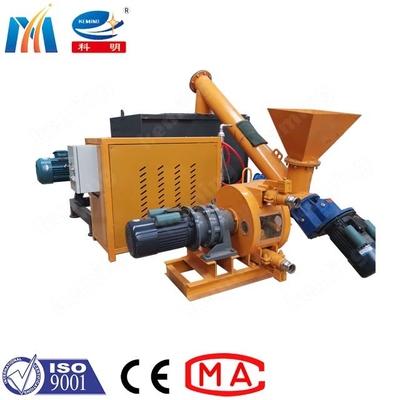

Single Phase Cement Foaming Machine Whole Line With Mixer And Feeding Conveyor In Malaysia Price
Application:
The cement foaming machine is actually an air-entraining machine.
Its essence is to introduce air into the foaming agent aqueous solution.
Its technical core is the best way to introduce air into the aqueous solution.
The cement foaming machine itself cannot produce foam out of thin air.
It introduces air into the foaming agent aqueous solution to evenly disperse it to achieve the largest possible contact interface between liquid and gas, so that the surface active substances in the foaming agent are in the liquid film.
An electric double layer is formed on the surface and surrounds the air, forming individual bubbles.
Features:
1. Concrete Foaming Machine combines feeding machine, water adding device, mixing system, foaming system, delivery system together. It is convenient to operate, automatic cement feeding, automatic mixing of cement slurry, automatic foaming of foaming agent, automatic delivery of foaming concrete.
2. The machine adopts high pressure foaming technology with good foaming performance,even,high quality,unbreakable,accurate(foaming amount can be precisely controlled within mg).
3. Delivery system adopts the most advanced pumping system of hose pump, with simple operation, low fault rate, less wearable parts, convenient maintenance,and low cost.
4. The machine shell is made of high strength and precious steel plate, which is painted at high temperature of 280℃ and has long service life.
5. The machine saves production costs and improves economical returns.Compared with similar products, the machine can save 50~100kg cement per cubic meter product.
6.The machine is the ideal equipment of foaming cement,with light weight,small size, convenient movement, high efficiency.
Specification:
| model | capacity m3/h | pressure MPa | power kw | delivery distance | sequenze hose ID mm |
| KFP-32 | 1-5 | 1 | 4 | 30/10 | 32 |
| KFP-50 | 1-8 | 2 | 5.5 | 100/50 | 50 |
| KFP-70 | 1-10 | 3 | 7.5 | 200/70 | 50 |
| KFP-100 | 1-15 | 4 | 7.5 | 300/100 | 60 |
| KFP-120 | 1-25 | 4 | 11 | 300/120 | 65 |
| KFP-150 | 1-30 | 4 | 11 | 400/30 | 75 |
Certification:
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Why choose us:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery. 4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
