12m3/H Self Loading Concrete Mixer Machine For Villa Construction

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

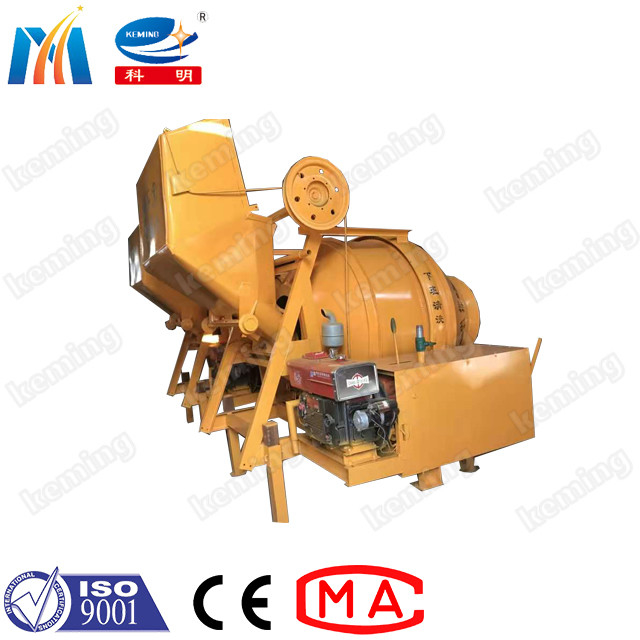

12m3/H Self Loading Concrete Mixer Machine For Villa Construction

12m3/H Self Loading Concrete Mixer Machine For Villa Construction
12m3/H Self Loading Concrete Mixer Machine For Villa Construction
video play

Large Image :  12m3/H Self Loading Concrete Mixer Machine For Villa Construction

Product Details:
Place of Origin: Zhengzhou, China
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: JZC 300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box, nude packing
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union, D/A, D/P, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Condition: New Outline Dimension: Vary With The Model
Motor Power: Vary With The Model After-sales Service Provided: Instruction Book, Online Support
Discharge Way: Self- Loading Warranty: 12 Month
Color: Customized Engine: Electrical Or Diesel
High Light:

12m3/H Concrete Mixer Machine

,

4kw Stirring Concrete Mixer Machine

,

17r/Min Concrete Grout Mixer Machine

China JZC 300 Wheel Concrete Mixer Concrete Mixing Truck For Villa Construction

Application:

JZC series concrete mixer is also called friction mixer. It is a concrete mixer model driven by rubber roller friction. This mixer is a drum type concrete mixer with positive rotation mixing and reverse discharge type.
It has low noise and stable operation. It has the advantages of convenient operation and movement, high mixing quality, and can mix plastic and semi-dry concrete.
It is a type of equipment between forced mixers and civil mixers.



The JZC series concrete mixer is a machine that mixes cement, sand and gravel aggregates and water and mixes them into concrete mixtures.
It is mainly composed of mixing drum, feeding and unloading mechanism, water supply system, prime mover, transmission mechanism, frame and supporting device.
According to its working nature, it can be divided into two types: batch type (batch type) and continuous type.


Features:

The JZC series concrete mixer includes a power mechanism connected with a transmission mechanism through a shaft and a drum driven by the transmission mechanism.
The drum barrel is equipped with a gear ring arranged around the drum barrel, and a gear meshing with the gear ring is arranged on the transmission shaft.
The utility model has a simple and reasonable structure. After gears and ring gears are used for meshing, it can effectively overcome the slippage between the supporting wheel and the mixer drum in rainy and foggy weather; the adopted transmission mechanism can further ensure that the gap between the supporting wheel and the mixer drum is eliminated.


Specification:

Model
JZC300

JZC350

JZC400

JZC500

JZC750
Charging volume (L)
480 560 640 800 1200
Discharging capacity (L)
300 350 400 500 750
Productivity(m3/h)
8-12 10-14 12-16 18-20 25-30
Rev of drum(r/min)
17 14 14 13 12
Max size of aggregate(mm)
60 60 60 80 80
Water-supply error



≤2%
≤2%
≤2%
≤2%
≤2%
Discharge height(mm)
1250 1250 1250 1500 1800
Stirring motor(kW)
4 5.5 5.5 7.5 11
Lifting motor(kW)
/ /4.5 4.5 5.5 7.5
Water pump motor(kW)
0.55 0.55 0.75 0.75 1.1
Tire size
6.00-16 6.00-16 6.00-16 7.50-16
Towing speed(km/h)
20 20 20 20
Outline dimension
2.3x2x2.8 2.8x2.2x2.8 3x2.3x2.9 3.3x2.5x3.7 3.8x2.1x3.8
L×B×H (m)
Machine weight (kg)
1300 1400 1400 1800 2500


Certification:
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

12m3/H Self Loading Concrete Mixer Machine For Villa Construction 012m3/H Self Loading Concrete Mixer Machine For Villa Construction 112m3/H Self Loading Concrete Mixer Machine For Villa Construction 2
Related machines:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
12m3/H Self Loading Concrete Mixer Machine For Villa Construction 312m3/H Self Loading Concrete Mixer Machine For Villa Construction 412m3/H Self Loading Concrete Mixer Machine For Villa Construction 5
Why choose us:
12m3/H Self Loading Concrete Mixer Machine For Villa Construction 6
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

12m3/H Self Loading Concrete Mixer Machine For Villa Construction 712m3/H Self Loading Concrete Mixer Machine For Villa Construction 8
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

12m3/H Self Loading Concrete Mixer Machine For Villa Construction 912m3/H Self Loading Concrete Mixer Machine For Villa Construction 10
Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility: Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace

Exhibition:
Bauma Shanghai 2018
12m3/H Self Loading Concrete Mixer Machine For Villa Construction 1112m3/H Self Loading Concrete Mixer Machine For Villa Construction 12
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery. 4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
