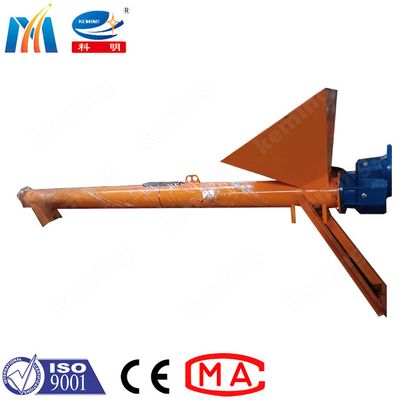

Dry Cement And Sand Conveying Screw Type Feeder For Cement Foaming Plant
The Screw Type Feeder is a special equipment for batching and conveying of aggregate (concrete,cement, sand) machine.
The Screw Type Feeder has the characteristics of compact structure, simple and convenient operation, and stable working performance.
The Screw Type Feeder can achieve automatic proportioning and continuous loading of cement and gravel.
The Screw Type Feeder can effectively reduce the labor intensity of operators and improve production efficiency. It is an ideal product for coal mine support operations.
The Screw Type Feeder can be used in the construction of anchor spraying support in mine shafts, railway tunnels, highway slopes, subways, culverts, water conservancy and other projects, such as the cement foaming machines.
The Screw Type Feeder is conveyed by rubber belt. There are also screw type for choose which can mix two or three kinds dry material.
The speed of the spiral body of the vertical screw conveyor is higher than that of the ordinary screw conveyor. The added material generates friction with the casing under the action of centrifugal force, which prevents the material from rotating with the screw blades and overcomes the drop of the material.
The machine has a small conveying volume, a small conveying height, a high speed, and a large energy consumption. It is especially suitable for conveying powdery and granular materials with good fluidity, mainly used for lifting materials, and the lifting height is generally not more than 8 meters.
|Model||Screw diameter(screw feeder)mm||Belt width(belt feeder)mm||Rated input power kw||Length m|
|SDL160||150-180(length can be customized)||3(4/5.5)||2/3|
|SDL220||200-230(length can be customized)||5.5(4/7.5)||2/3/4|
|SDL300||300-330(length can be customized)||300(length can be customized)||4(5.5/7.5/11)||3/4/5|
|SDL400||400-430(length can be customized)||400(length can be customized)||4(5.5/7.5/11)||3/4/5|
|SDL600||600-630(length can be customized)||600(length can be customized)||5.5(7.5/11)||3/4/5/6|
|SDL800||800-830(length can be customized)||7.5(11)||4/5/6/9|
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of
Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility: Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace.
Bauma Shanghai 2018
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
