Home ProductsDry Mix Shotcrete Machine

Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

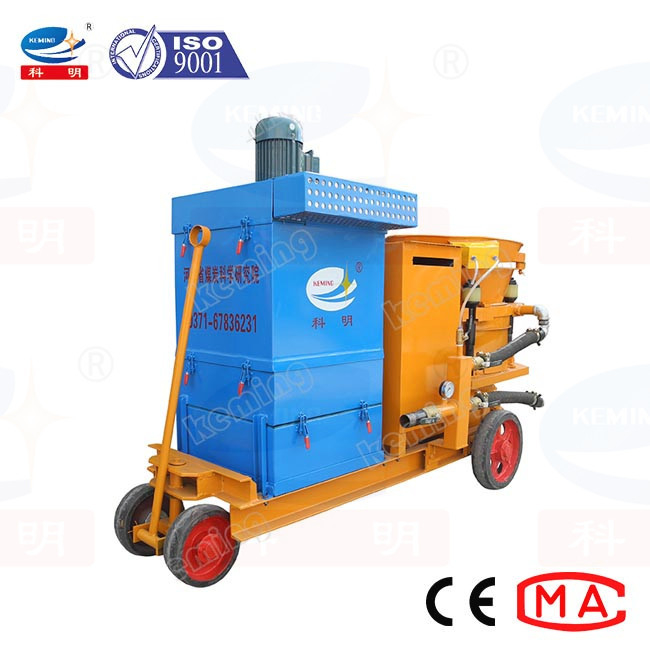

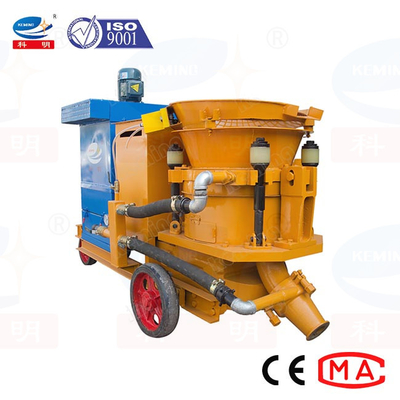

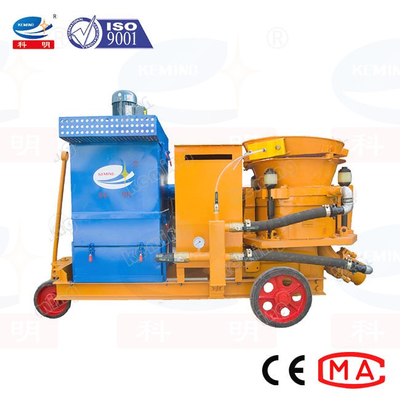

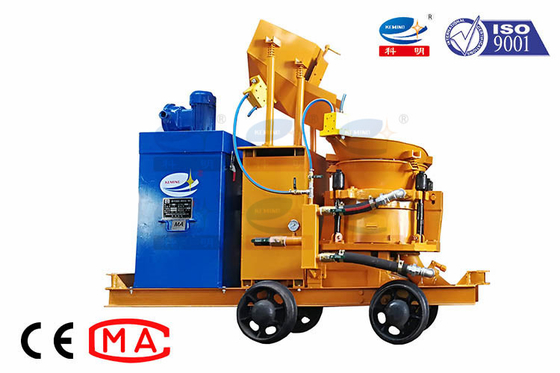

Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering

Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering
Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering

Large Image :  Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering

Product Details:
Place of Origin: China(mainland)
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KCPZ series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 5-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 20 sets per month
Detailed Product Description
Keywords: Dedusting Shotcrete Machine Application: Mining Engineering
Color: Customized Certification: CE, ISO, MA
After-sales Service Provided: Online Support Condition: New
Dimension(l*w*h): Vary With The Model Voltage: Customized
Warranty: 1 Year
High Light:

Plaster Concrete Shotcrete Machine

,

Dedusting Concrete Shotcrete Machine

,

Mining Engineering Concrete Shotcrete Machine

Dust Removal Concrete Shotcrete Machine Dust Collector Gunite Machine

Introduction:

Dust removal concrete sprayer can be used for wet spraying, dry spraying and various fiber spraying operations. It has the characteristics of advanced technology, reasonable structure, stable performance, convenient operation and maintenance, and long service life. It is widely used in tunnels and culverts. , Subway, hydropower engineering, underground engineering and coal mine high marsh mine roadway sprayed concrete construction operations; various wall reinforcement sprayed fine stone concrete; various industrial furnaces, furnace lining refractory spray molding or repair; slope greening, soil transportation and injection.

Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 0

1. The machine has fewer wearing parts, the quality of the wearing parts is improved, and the construction cost is greatly reduced;

2. The machine has fast feeding and discharging speed. As long as the concrete ratio is appropriate and the material can be ensured, the approximate theoretical discharge consistency can be achieved;

3. The ratio of the cross-sectional area of the material cavity partition of the machine to the cross-sectional area of the material cavity is small, and the material flow is continuous;

4. The machine adopts humanized design and is equipped with a hanger, which is extremely convenient to disassemble and assemble, and uses fewer tools, which reduces the labor intensity of the constructor;

5. The machine has low noise and low dust during construction. It can be used for wet and dry spraying machine, which is an environmentally friendly concrete spraying machine.

Features:
1. KCPZ Dedusting Shotcrete Machine obtains the Invention Patent and Utility Model Patent.
2. The machine structure and spraying nozzle have new designs. New environmental shotcrete machine, less environmental pollution (less than 90% of dust pollution of traditional machine), less harm to workers’ health.
3. New spraying nozzle device, even concrete mix, low rebound rate. Adding accelerator automatic
ally and evenly, saving labor.
4. Compact machine structure, simple operation, suitable for concrete operation in narrow space.



Specification:


KCPZ shotcrete machine parameter
capacity 6m3/h
delivery distance 100m/30m(horizontal/vertical)
max. aggregate size ≤20mm
delivery pipe ID 51mm
rated working pressure 0.5 MPa
air consumption ≤8m3/min
feeding height 1.1m
rebound rate ≤20%
dust concentration ≤15mg/m3
rotor rev.speed 11 r/min
main motor power 7.5 kw
dust collector motor power 1.1 kw
main motor rev.speed 960 r/min
accelerator adding hopper 25 kg
dimension 2150x900x1750 mm
weight  980 kg

Company information:
Company information:
Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 1


Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products.

Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products which makes Keming as a chinese famous brand in this field.
Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 2Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 3Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 4
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 5Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 6
Related machines:
Our main machines are : Shotcrete equipment, grouting equipment, mixing equipment, plastering equipment, hose pump etc.
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 7Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 8Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 9
Certification:
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 10Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 11Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 12
Exhibition:
Bauma Shanghai 2018
Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 13Dedusting Plaster Concrete Shotcrete Machine For Mining Engineering 14
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
If you have any other questions, pls feel free to contact us , will choose the most suitable machines for you !
