Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction

Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction

  • High Light

    500L Pan Mixer

    ,

    500L Pan Concrete Mixing Machine

    ,

    8M3/H Concrete Mixing Machine

  • Condition
    New
  • Outline Dimension
    Vary With The Model
  • After-sales Service Provided
    Instruction Book, Online Support
  • Discharge Way
    Automatic
  • Water Supply Mode
    Hand Control
  • Warranty
    1 Year
  • Color
    Yellow, Customized
  • Application
    Construction Site
  • Weight
    Vary With The Model
  • Engine
    Electrical
  • Place of Origin
    China(mainland)
  • Brand Name
    KeMing
  • Certification
    CE, MA, ISO
  • Model Number
    JW series
  • Minimum Order Quantity
    1 set
  • Packaging Details
    wooden box
  • Delivery Time
    2-3weeks
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    20 sets per month

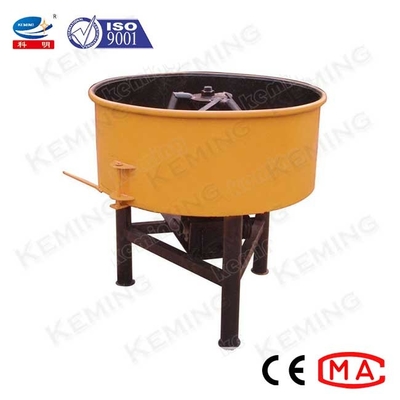

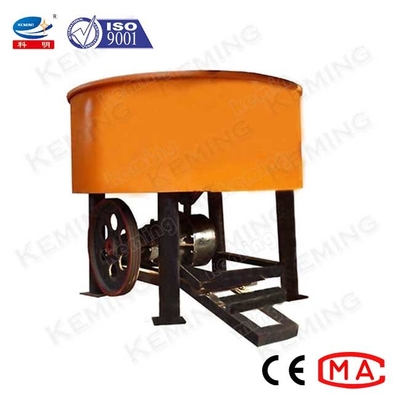

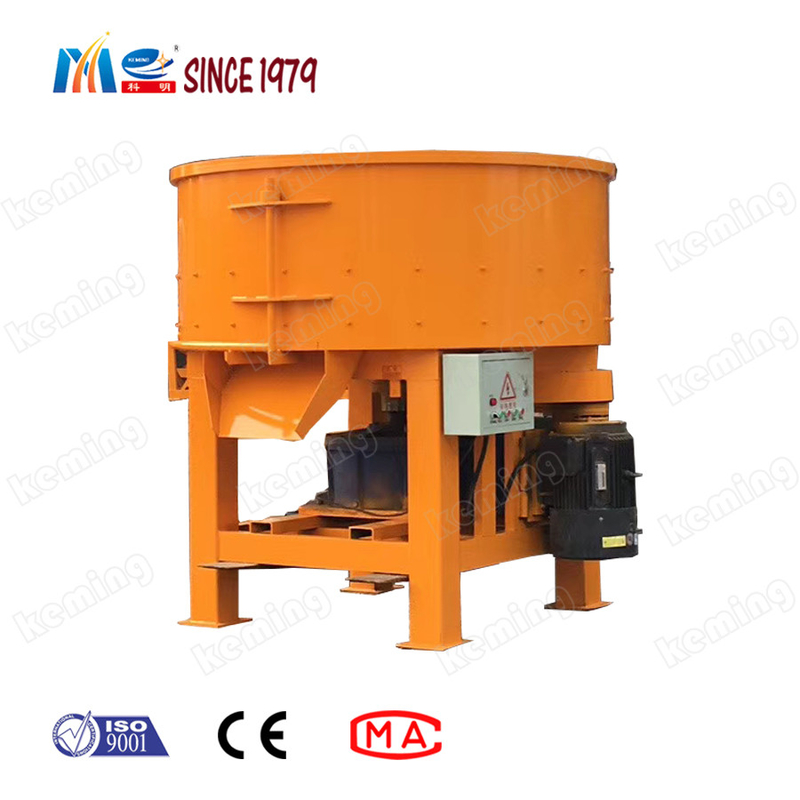

Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction

Products introduction:

The industrial pan mixer is a kind of machine which specialized in mixing concrete.
It can work independently and also can used for mixing plant while composed with other matched devices.
The working principle is that it mixes material while rotating in clockwise direction,and discharging material while roating in anticlockwise direction.
The machine is widely be used for construction site such as real estate ,road,bridge,etc.





The design of the pan mixer is very ingenious. It uses a novel rotor structure to adjust the gap between the rotor and the pan body, the pan bottom to be very small, or even close to zero. This effectively prevents the residue of materials.

The mixing pan bodies are all installed on the frame, and the frame is made of high-quality carbon steel plate and thickened channel steel welded. Cycloid pin wheel speed reduction has compact structure and convenient operation.

Specification:



Model JW250 JW350 JW500 JW750 JW1000 JW1500 JW3000
Volume 250L 350L 500L 750L 1000L 1500L 3000L
Productivity(m3/h) 6--8 9--12 15-18 18-20 25-30 30-40 30-60
Rotary speed(r/min) 19 21 40 40 21 21 21
Power(KW) 5.5 5.5 7.5 11 13 15 22

Dimension(M)

(diameter*height)

Φ1.1×1.1 Φ1.2×1.4 Φ1.3×1.4 Φ1.5×1.4 Φ1.8×1.4 Φ1.8×1.6 Φ2.5×1.8

Certification:

In March 1979, our company was established in Zhengzhou, Henan.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification. In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction 0Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction 1Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction 2

Why choose us:

Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction 3

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction 4

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction 5Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction 6Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction 7

Exhibition:

Bauma Shanghai 2018

Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction 8Automatic Discharge 500L Pan Mixer Concrete Mixing Machine For Construction 9

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
If you have any other questions, pls feel free to contact us will choose the most suitable machines for you!
