Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

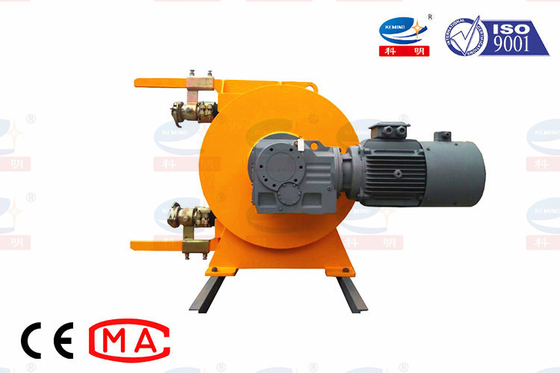

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying
Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying

Large Image :  Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying

Product Details:
Place of Origin: China(mainland)
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KH series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 20 sets per month
Detailed Product Description
Model: KH Series Warranty: 1 Year
Color: Blue, Yellow, Customized Capacity: 0.3-80 M3/h
Max Aggregate Size: 2-10mm Power Engine: Electric Driven
High Light:

Mortar Conveying Industrial Hose Pump

,

Peristaltic Industrial Hose Pump

,

Cements Praying Industrial Hose Pump

three sequence axle industrial hose pump large capacity of hose pump for mortar conveying



Application:

1. Construction — pump and spray of cement, mortar, plaster, slurry, fine aggregates concrete …
2. Mining industry — delivery of mining slurry, gold pulp, tailing, thick pulp, filling materials…
3. Water treatment — delivery of water, sewage, thick slurry, precipitated sludge…
4. Pharmacy — delivery of drug liquids, harmful and corrosive materials…
5. Textile industry — delivery of fibers, dyes, additives…
6. Paper making and printing industry — delivery of paper slurry, ink, glue…
7. Ceramic and glass industry — delivery of glaze, slurry, pigment…
8. Brewing industry — delivery of beer or wine, treatment of wine sediment…
9. Food industry — delivery of beverage, cream, juice, milk, chocolate, addictive…
10. Chemical industry — delivery of corrosive, acid, alkali, phosphate liquid, inorganic materials, suspending liquid, electroplate liquid, precipitate …
11. OEM: customized pump manufacture for industrial corollary equipment.



Hose pumps belong to the category of peristaltic pumps. The peristaltic pump is a type of rotor positive displacement pump, named because its working principle is similar to that of the digestive tract to transport gas, solid and liquid three-phase media in a peristaltic manner.



The designer and user of hose pumps first value its ability to transport strong abrasive media. It has no valve and no seal. The only part in contact with the medium is the inner cavity of the rubber hose. The rotor of the compressed hose is completely independent of the medium.



The uniqueness of the hose pump: no other pump has better self-priming ability than the hose pump, which can almost produce a perfect vacuum to suck liquid; transport gas-containing liquid and foam liquid without air resistance; transport high viscosity, Shear sensitive media is also a strong point; a fixed displacement per revolution has nothing to do with the outlet pressure, it is a natural metering pump.



Features:

1. No valve operation, no back flow, stable pumping flow, low fault rate.
2. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
3. High vacuum, strong self-suction capacity.
4. Convenient maintenance, less wearable parts (except extruded hose).





the reason of the wearness of the hose:

Abrasive media does wear to the inner wall of the hose, making the wall thickness of the known hose thinner, resulting in internal leakage or backflow and a decrease in flow due to lax compression; internal leakage further increases the wear rate of the inner wall; but high quality All hose pumps should be equipped with hose compression adjustment devices, which need to be continuously adjusted during the use of the pump to prevent internal leakage and flow decline.

Regardless of the compatibility of the conveying medium and the hose material, the service life of the hose is the same for conveying strong abrasive media and non-abrasive mucus. In fact, in addition to the rubber type and manufacturing quality of the hose itself, the primary factor that determines the life of the hose is the number of times the hose is compressed; the second factor is the way and strength of the hose and the resulting frictional heat.

In other words, the failure of the hose is due to the accumulation of compression times and fatigue aging caused by frictional heat.

The best way to maximize hose life and extend the interval between downtime is to reduce the number of times the hose is compressed, use a compression method that minimizes damage to the hose, and accurate compression.

Spare parts :

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 0Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 1

Related machines:

Shotcrete machine:

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 2

Shotcrete pump:

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 3

Data:

model rated output m3/h rated pressure MPa rated power kw max.aggregate size mm max.suction dist. m
KH-15 0.3 0.6 0.55 2 2
KH-25 0.8-1.3 1.5 1.1/1.5 3 3
KH-32 1.3-1.8 1.5 2.2 3 4
KH-40 2.0-3.5 1.5 2.2/4 4 4
KH-50 4.0-8.0 1.5 4/5.5 7.5 5 5
KH-65 9.0-15.0 1.0 7.5/11 6 5
KH-75 15.0-30.0 1.0 11/15 6 5
KH-90 30.0-40.0 1.0 15/18 8 5
KH-100 40.0-50.0 1.0 15/18 8 5
KH-130 50.0-70.0 1.0 18/22 10 5
KH-150 70.0-80.0 1.0 22/30 10 5

Certification:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 4Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 5Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 6

Why choose us:

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 7

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 8Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 9

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 10Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 11

Related machines:

Wet shotcrete machine:

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 12

Full automatic plastering machine for gypsum:

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 13

Exhibition:

Bauma Shanghai 2018

Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 14Mortar Conveying Peristaltic Industrial Hose Pump Cements Praying 15

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.It is suggested to place online order with a Trade Assurance (Alibaba) to get full protection for this order.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
