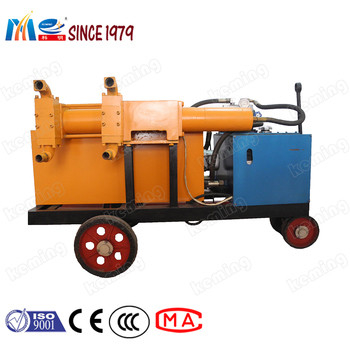

Adjustable grouting pressure Hydraulic Grout Pump for concrete grouting use

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Adjustable grouting pressure Hydraulic Grout Pump for concrete grouting use

Adjustable grouting pressure Hydraulic Grout Pump for concrete grouting use
Adjustable grouting pressure Hydraulic Grout Pump for concrete grouting use
video play

Large Image :  Adjustable grouting pressure Hydraulic Grout Pump for concrete grouting use

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: Hydraulic Grout Pump Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product Name: Hydraulic Grout Pump Machine Capacity: 0.6-3m3/h
Pressure: 7-21Mpa Selling Point: Separated Control Valves
High Light:

Cement Grout Injection Pump

,

Mortar Piston Grout Pump

,

6 0L/Min Piston Grout Pump

Adjustable grouting pressure Hydraulic Grout Pump for concrete grouting use

Hydraulic Grout Pump Machine Introductions:

Hydraulic Grout Pump includes KBY series and KBYSseries, which are a kind of grounting pump that can grount and convey mortar or similar fluids materials.

Hydraulic Grout Pump Machine Features:

1. Adjustable grounting pressure within the rated pressure.

2. Perfect waterproof device.

3. Separated control valves.

4. Single or double fluid grounting.

5. Special suction-discharge valve and sealing structure.

6. Advanced monitoring system with double seismic pressure gauges.

7. Small size, light weight, flexible movement, reliable performance.

Hydraulic Grout Pump Machine Application:

1. KBY Hydraulic Grout Pump is mainly applied in mining well, tunnel, hydraulic engineering subway, bridge and building construction, to grout for water blocking, fill in void or reinforce the crumbly strata.

2. KBYS hydraulic mortar pump can be used for horizontal and vertical mortar delivering or large are a coating in construction engineering.

3.Filling cement grouting of road surface collapese in highway payment maintenance.

4. Dam reinforcement in water engineering.

5.Slurry injection expansion in pre-stressed engineering.

6. Slope protection grouting in civil engineering, mining tunnel construction etc.



Hydraulic Grout Pump Machine Technical Parameters:

Model Pressure Mpa Output m3/h Motor kw Weight kg
KBY3/7-11 0 4.6 11 400
7 3
KBY8/7-18.5 0 13 18.5 600
7 2
KBY3/16-22 0 10.2 22 480
16 2
KBY2.1/21-22 0 2.7 22 480
21 0.6
KBY5/18-22 0 5.2 22 480
18 1.2
KBY3/21-30 0 4.9 30 510
21 3
