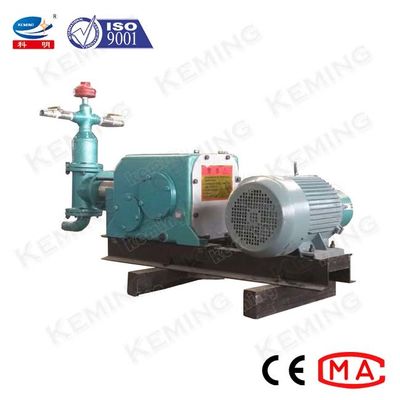

5.5KW 50L/Min Bridges Diesel Cement Grouting Pump

5.5KW 50L/Min Bridges Diesel Cement Grouting Pump

  • High Light

    Diesel Cement Grouting Pump

    ,

    50L/Min Cement Grouting Pump

    ,

    Bridges Cement Grouting Pump

  • Capacity
    50L/min
  • Pressure
    3Mpa
  • Motor
    5.5KW
  • Option
    Diesel/Electric
  • Place of Origin
    CHINA
  • Brand Name
    KEMING
  • Certification
    CE
  • Model Number
    KBW-50
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiation
  • Packaging Details
    Export Wooden Packing
  • Delivery Time
    5~8 Work Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    100 Sets/Per Month

5.5KW 50L/Min Bridges Diesel Cement Grouting Pump

High quality mortar pump cement grout pump concrete grouting machines

Grouting Pump Features:

1. KBW mud pump is widely used for grouting and mud jacking in engineering construction.

2.KBW mud pump have four gear shifts.Output and drilling depth are adjustable,so it can be used to grout

cement slurry or equipped with drilling machine.

3. High quality pump parts, less wearing parts, long service life, low construction cost.

4. High pump efficiency, less noise and dust, environmental operation, easy maintenance.

Grouting Pump Application:

1. KBW-50 piston pump is widely used for cement/mortar grouting in roads, bridges, dams, national defense, mines and other construction projects.

2. KBW-50 piston pump can be used to grout mortar in prestressed component engineering, vertical and horizontal conveying of mortar in building construction, cement grouting maintenance in sand land, blast furnace, cement pavement, highway and other projects.

Technical Parameters:

Model
KBW-50 grouting pump
Capacity (L/min)
50
Cylinder number (piece)
1
Cylinder diameter (mm)
80
Piston stroke (mm)
90
Pressure (MPa)
3
Motor (KW)
7.5
Input speed (r/min)
1440
Suction hose ID. (mm)
51
Discharge hose ID. (mm)
32
Maximum suction height (m)
2
Triangle belt model
A1880 (3 grooves)
Dimensions (L x W x H) (mm)
1500×550×800
Weight (kg)
200
