Product Details:
Payment & Shipping Terms:
|
| Theory: | Piston Pump | Capacity: | 60L/min |
|---|---|---|---|
| Pressure: | 4Mpa | Motor: | 5.5KW |
| Highlight: | 60L/Min Reciprocating Water Pump,5.5KW Reciprocating Water Pump,Boiler Cement Grouting Pump |
||

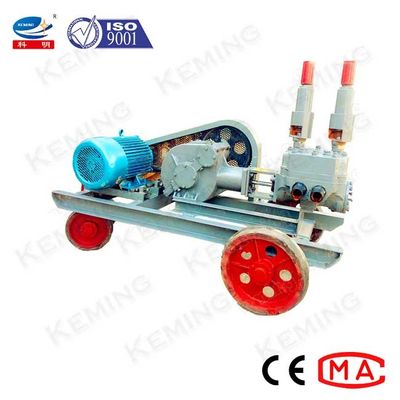

1. KGB Piston Pump can be used to grout mortar, cement paste, slurry and other liquid (particle size ≤ 3mm).
2. It is widely used in tunnels, coal mine, bridges and dams, building foundation, and other underground projects.
1. KGB is a single Cylinder Double-action Piston Pump
2. KGB Piston Pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure,lift much,less engergy consumption,easy operation,high quality and duarable,easy to move,especially for mountain terraces of irrigation.
3. It has simplified structure, light weight, flexible movement, convenient operation and maintenance.
|
Model
|
KGB piston pump
|
|
Rated output
|
3.6 m3/h
|
|
Rated pressure
|
4 Mpa
|
|
Reciprocating times
|
85/min
|
|
Motor power
|
5.5KW
|
|
Volumetric coefficient
|
≥92%
|
|
Pump efficiency
|
≥84%
|
|
Piston diameter
|
75mm
|
|
Piston stroke
|
85mm
|
|
suction hose diameter
|
38mm
|
|
Discharge hose diameter
|
32mm
|
|
Weight
|
210kg
|
|
Dimension
|
1500×500×700mm
|
