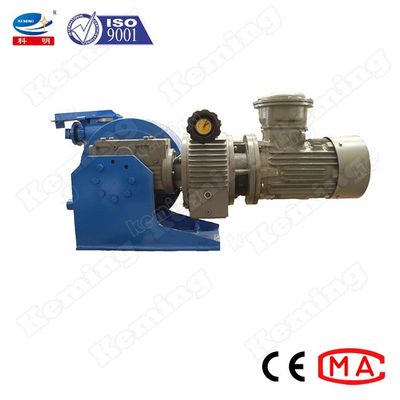

Concrete Hose Squeeze Peristaltic Pump For Industry Application
Peristaltic Pump Features:
1. Reversibility
2· Sealessness and valveless
3· Abrasion resistance
4· Self priming with high suction
Peristaltic Pump Application:
1. Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage and so on.
2. Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge.
3. Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate.
4. Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...
5. Paper industry: paper pulp, liquid sulfur.
6. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.
7. Oil industry: drilling fluid,crude oil.
8. Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil.
9. Ceramic industry: ceramic germ plasma, slip glaze, glaze materials.
10. Others: pharmaceutical liquid,radioactive liquid,textile auxiliary,adhesion agent,glue,latex.
Technical Parameters:
|
Model
|
KH38C Peristaltic Pump
|
|
Output
|
2000~3500 L/h
|
|
Rated pressure
|
1.5 MPa
|
|
Rev.
|
40~70 r/min
|
|
Hose length
|
1150 mm
|
|
Max. particle dia.
|
5 mm
|
|
Max. suction dist.
|
4 m
|
|
Motor power
|
2.2/ 3/ 4 KW
|
|
Reducer type
|
Gear reducer
|
|
Note:
Driven power could be electric motor or diesel engine.
Various squeeze hoses are available for pumping different materials.
Customized pump is available.
|
