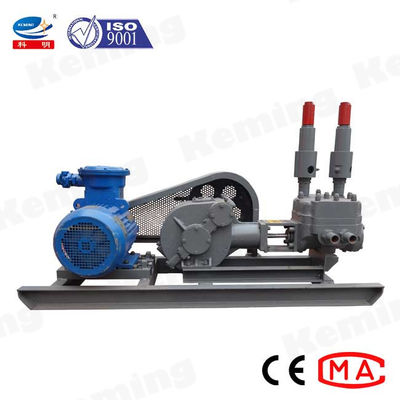

60L/Min Capacity Drilling Piston Cement Grouting Pump

60L/Min Capacity Drilling Piston Cement Grouting Pump

  • High Light

    cement injection grouting pump

    ,

    cement grouting equipment

  • Theory
    Piston Pump
  • Capacity
    60L/min
  • Pressure
    4Mpa
  • Motor
    5.5KW
  • Certification
    CE, MA
  • Name
    Cement Grouting Pump
  • Place of Origin
    CHINA
  • Brand Name
    KEMING
  • Certification
    CE, MA
  • Model Number
    ZBS
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiation
  • Packaging Details
    Export Wooden Packing
  • Delivery Time
    5~8 Work Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    100 Sets/Per Month

60L/Min Capacity Drilling Piston Cement Grouting Pump

Water Well Drilling Machine With ZBS Cement Grouting Pump For Drilling

Cement Grouting Pump Features:

1. ZBS3.6/4-5.5 double liquid grout pump is a single cylinder double action piston pump, which can work in inflammable and explosive sites,dusty and rainy environment, or other bad conditions.

2. ZBS grout pump has simple structure, light weight, small size,reliable performance, high pumping pressure.

Cement Grouting Pump Application:

1. ZBS grout pump can be used to grout cement paste, mortar and other liquid (particle size ≤ 3mm).Medium temperature is between 5 to 80 ℃.The water cement ratio (weight ratio) of solid-liquid mixture should be 0.75 or higher. The maximum output pressure should be 4 MPa, and work flow 3.6 m3/h.

2. ZBS grout pump is widely used pressure grout in tunnels, coal mine, bridges and dams, building foundation, and other underground projects.

Technical Parameters:

Model
ZBS grouting pump
Rated output
3.6 m3/h
Rated pressure
4 Mpa
Reciprocating times
85/min
Motor power
5.5KW
Volumetric coefficient
≥92%
Pump efficiency
≥84%
Piston diameter
75mm
Piston stroke
85mm
Sipper diameter
20mm
Weight
280kg
Dimension
1500×500×700mm
