Product Details:
Payment & Shipping Terms:
|
| Output: | 110~120m2/h | Pressure: | 2Mpa |
|---|---|---|---|
| Max Aggregate: | 4mm | After-sales Service Provided: | Video Technical Support |
| Main Motor: | 4kW | Air Compressor: | 0.26 M3/min |
| Highlight: | cement plastering machine,construction plastering equipment |
||

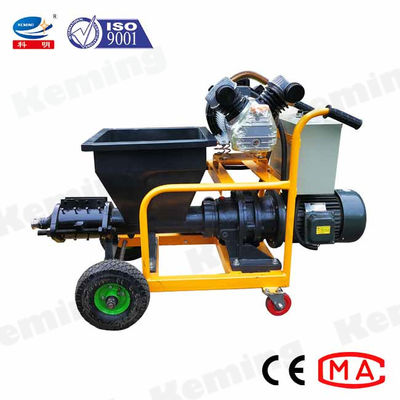

1. KLW-120 Cement Mortar Plastering Machine can spray 120 square meters per hour.
2. Small size and light weight, flexible movement, convenient operation and maintenance.
3. Low noise, high pressure, high capacity, high efficiency, reliable performance, long service life.
1. The Plastering Machine is a new desinged multi-functional plastering equipment.
2. The Plastering Machine can be used for pumping and spraying ready-mixed mortar material, such as cement mortar, lime plaster, gypsum plaster, masonry mortar.
3. The Plastering Machine can be used for plastering fluid materials, such as thermal insulation material of walls, refractory material, fire-proof material, water-proof material, acoustic material etc.
| Model |
KLW-120 Mortar Spraying Machine
|
|
Capacity
|
100~120m2/h(mortar)
200~3002/h(putty)
3m3/h(grouting)
|
|
Motor power
|
4kW
|
|
Output pressure
|
2Mpa
|
|
Delivery dist.
|
15m/10m
|
|
Max. aggregate size
|
4mm
|
|
Water: cement:sand
|
0.7-1:1:3
|
|
Hopper volume
|
35L
|
|
Delivery pipe
|
32mm
|
|
Air hose
|
13mm
|
|
Air compressor
|
0.26m3/min
|
|
Weight
|
200kg
|
