Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Home ProductsIndustrial Hose Pump

Chemicals Thick Liquid Dosing Pump 2 - 6mm Aggregate High Capacity CE Certification

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Chemicals Thick Liquid Dosing Pump 2 - 6mm Aggregate High Capacity CE Certification

Chemicals Thick Liquid Dosing Pump 2 - 6mm Aggregate High Capacity CE Certification
Chemicals Thick Liquid Dosing Pump 2 - 6mm Aggregate High Capacity CE Certification Chemicals Thick Liquid Dosing Pump 2 - 6mm Aggregate High Capacity CE Certification Chemicals Thick Liquid Dosing Pump 2 - 6mm Aggregate High Capacity CE Certification

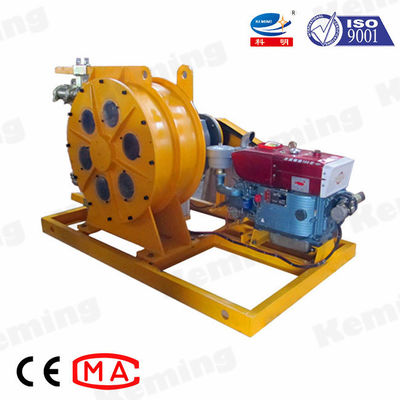

Large Image :  Chemicals Thick Liquid Dosing Pump 2 - 6mm Aggregate High Capacity CE Certification

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE
Model Number: KH
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 10~30 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Name: Liquid Dosing Pump Capacity: 0.3~110m3/h
Pressure: 0.3-3Mpa Power: 0.55~37kW
Aggregate: 2~6mm Model: KH
High Light:

food grade liquid transfer pump

,

peristaltic hose pump

High Quality KH Chemicals Thick Liquid Dosing Pump With Hose Pump At Best Price

Industry Hose Pump Features:

1. No valve operation, no back flow, stable pumping flow, low fault rate.

2. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.

3. High vacuum, strong self-suction capacity.

4. Convenient maintenance, less wearable parts (except extruded hose).

Industry Hose Pump Application:

1. Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage and so on.

2. Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate.

3. Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge.

4. Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...

5. Oil industry: drilling fluid,crude oil.

6. Ceramic industry: ceramic germ plasma, slip glaze, glaze materials.

7. Paper industry: paper pulp, liquid sulfur.

8. Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil.

9. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.

10. Others: pharmaceutical liquid,radioactive liquid,textile auxiliary,adhesion agent,glue,latex.

Technical Parameters:

Model
Rated Output
m3/h
Rated pressure
MPa
Rated power
KW
Max. aggregate size
mm
Max. suction dist.
m
KH15
0.3
0.6
0.55
2
2
KH25
0.8~1.3
1.5
1.1/ 1.5
3
3
KH32
1.3~1.8
1.5
2.2
3
4
KH40
2.0~3.5
1.5
2.2/ 4
4
4
KH50
4.0~8.0
1.5
4/ 5.5/ 7.5
5
5
KH65
9.0~15.0
1.0
7.5/ 11
6
5
KH75
15.0~30.0
1.0
11/ 15
6
5
KH90
30.0~40.0
1.0
15/ 18
6/8(soft)
5
KH100
40.0~50.0
1.0
15/ 18
6/8(soft)
5
KH130
50.0~70.0
1.0
18/ 22
6/10(soft)
5
KH150
70.0~80.0
1.0
22/ 30
6/10(soft)
5
KH200
100.0~110.0
1.0
30/37
6/15(soft)
5
