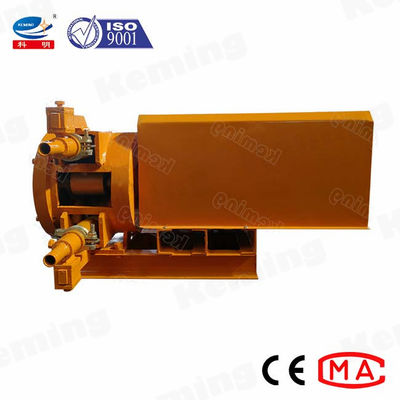

Concrete Peristaltic Industrial Hose Pump For Slurry High Efficiency 800 - 1300L/H Capacity

Concrete Peristaltic Industrial Hose Pump For Slurry High Efficiency 800 - 1300L/H Capacity

  • High Light

    food grade liquid transfer pump

    ,

    peristaltic hose pump

  • Name
    Industrial Hose Pump
  • Feature
    High Efficiency
  • Capacity
    800~1300L/h
  • Pressure
    1.5Mpa
  • Motor
    1.1kW, 1.5KW
  • Aggregate
    3mm
  • Place of Origin
    CHINA
  • Brand Name
    KEMING
  • Certification
    CE
  • Model Number
    KH25B
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiation
  • Packaging Details
    Export Wooden Packing
  • Delivery Time
    10~30 Work Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    100 Sets/Per Month

Concrete Peristaltic Industrial Hose Pump For Slurry High Efficiency 800 - 1300L/H Capacity

Widely Used High Efficiency Concrete Peristaltic Industrial Hose Pump For Slurry



Peristaltic Pump Application:

1. Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage and so on.

2. Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate.

3. Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge.

4. Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...

5. Paper industry: paper pulp, liquid sulfur.

6. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.

7. Oil industry: drilling fluid,crude oil.

8. Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil.

9. Ceramic industry: ceramic germ plasma, slip glaze, glaze materials.

10. Others: pharmaceutical liquid,radioactive liquid,textile auxiliary,adhesion agent,glue,latex.

Technical Parameters:

Model
KH25B Peristaltic Pump
Output
800~1300 L/h
Rated pressure
1.5 MPa
Rev.
50~80 r/min
Hose length
900 mm
Max. particle dia.
3 mm
Max. suction dist.
3 m
Motor power
1.1/ 1.5 KW
Reducer type
Cycloidal reducer
Note:
1. Driven power could be electric motor or diesel engine.
2. Various squeeze hoses are available for pumping different materials.
3. Customized pump is available.
