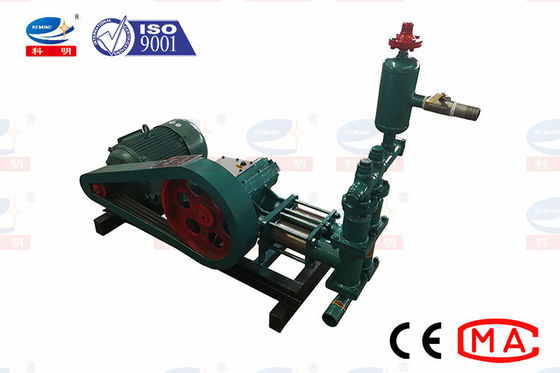

Piston Type Cement Grouting Pump High Pressure Environmental Protection

Piston Type Cement Grouting Pump High Pressure Environmental Protection

  • High Light

    hydraulic cement grout pump

    ,

    cement grouting equipment

  • Capacity
    75L/min
  • Pressure
    8Mpa
  • Motor
    11KW
  • Option
    Diesel/Electric
  • Place of Origin
    CHINA
  • Brand Name
    KEMING
  • Certification
    CE
  • Model Number
    KBW-70
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiation
  • Packaging Details
    Export Wooden Packing
  • Delivery Time
    5~8 Work Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    100 Sets/Per Month

Piston Type Cement Grouting Pump High Pressure Environmental Protection

Piston Type Cement Grouting Pump High Pressure Environmental Protection

Technical Parameters:

Model
KBW-70 Mud Pump
Capacity (L/min)
75
Cylinder number (piece)
2
Cylinder diameter (mm)
80
Piston stroke (mm)
75
Pressure (MPa)
8
Motor power (KW)
11
Input speed (r/min)
1440
Suction hose ID. (mm)
64
Discharge hose ID. (mm)
38
Maximum suction height (m)
2.5
Dimensions (L x W x H) (mm)
1200×850×900
Weight (kg)
490

Mud Pump Features:

1. KBW-70 cement grout pump is horizontal single-cylinder reciprocating single-action piston pump.

2. Compact structure, well sealing performance, high stability and high pressure.

3. High pump efficiency, less noise and dust, environmental operation, easy maintenance.

4. High quality pump parts, less wearing parts, long service life, low construction cost.

Mud Pump Application:

1. KBW-70 mud pump is widely used for cement/mortar grouting in roads, bridges, dams, national defense, mines and other construction projects.

2. KBW-70 mud pump can be used to grout mortar in prestressed component engineering, vertical and horizontal conveying of mortar in building construction, cement grouting maintenance in sand land, blast furnace, cement pavement, highway and other projects.

 Piston Type Cement Grouting Pump High Pressure Environmental Protection 0
