| Capacity: | 4.2~8m3/h | Pressure: | 1.5Mpa |
|---|---|---|---|
| Motor: | 4KW, 5.5KW, 7.5kW | Aggregate: | 5mm |
| High Light: | food grade liquid transfer pump,peristaltic hose pump |
||
|
Model
|

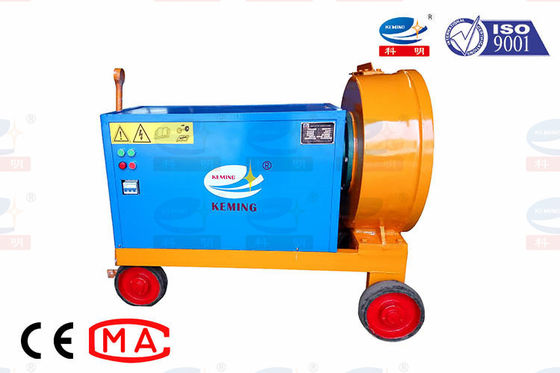

KH50B Peristaltic Pump
|
|
Output
|
4200~8000 L/h
|
|
Rated pressure
|
1.5 MPa
|
|
Rev.
|
35~45 r/min
|
|
Hose length
|
1360 mm
|
|
Max. particle dia.
|
5 mm
|
|
Max. suction dist.
|
5 m
|
|
Motor power
|
4/ 5.5/ 7.5 KW
|
|
Reducer type
|
Cycloidal reducer
|
|
Note:
Driven power could be electric motor or diesel engine.
Various squeeze hoses are available for pumping different materials.
Customized pump is available.
|
|
1. No valve operation, no back flow, stable pumping flow, low fault rate.
2. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
3. High vacuum, strong self-suction capacity.
4. Convenient maintenance, less wearable parts (except extruded hose).
1. Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate.
2. Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge.
3. Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage and so on.
4. Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...
5. Oil industry: drilling fluid,crude oil.
6. Ceramic industry: ceramic germ plasma, slip glaze, glaze materials.
7. Paper industry: paper pulp, liquid sulfur.
8. Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil.
9. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.
10. Others: pharmaceutical liquid,radioactive liquid,textile auxiliary,adhesion agent,glue,latex.
