Product Details:
Payment & Shipping Terms:
|
Capacity: | 6~7m3/h | Pressure: | 0.6Mpa |
---|---|---|---|
Max Aggregate: | 20mm | Main Power: | 16.2kW |
Horz. Distance: | 100m | Vert. Distance: | 40m |
Highlight: | wet shotcrete equipment,portable shotcrete machine |
Model
|

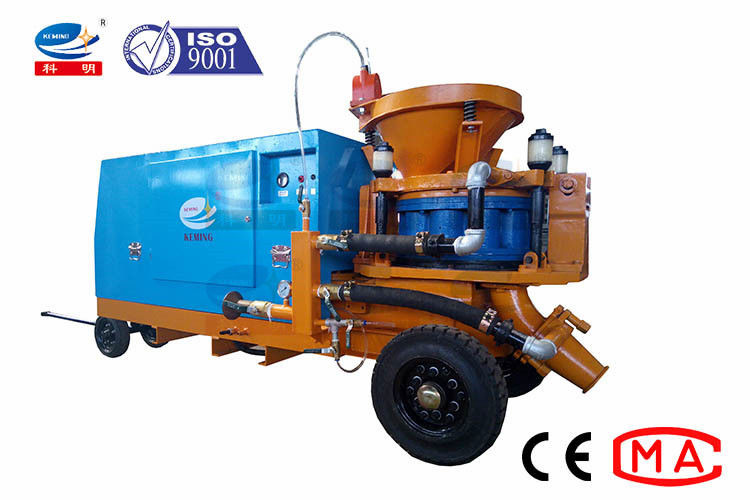

KSP-7D wet shotcrete machine
|
Capacity
|
5~7m³/h
|
Conveying distance
|
35m(WET)/120m(DRY)
|
Max. aggregate size
|
20mm
|
Concrete slump
|
8~20cm
|
Conveying Pipe ID.
|
57mm/64mm
|
Rebound rate
|
≤10%(on average )
|
Rated working pressure
|
0.3-0.6Mpa
|
Air consumption
|
11-12m³/min
|
Engine power
|
22hp
|
Feeding height
|
1.1m
|
Rotor speed
|
11r/min
|
Dimension
|
2550*950*1300(mm)
|
Weight
|
1100kg
|
1. KSP-7D Diesel Engine Wet Shotcrete Machine
2. KSP series wet shotcrete machine includes driving device, rotor assembly, sealing system, vibration hopper, air system, spraying system.
3. concrete mixture gets well mixed, water and cement ratio is accurately controlled.
4. quicker cement hydration, fewer dusts, lower rebound rate, good mixing uniformity and high concrete strength
5. reasonable structure, stable performance, convenient operation and maintenance, long service life.
6. model and motor(electricdiesel) are optional, customized model is available.
1. KSP-7D Wet Shotcrete Machinecan be used to spray half wet or wet concrete.
2. KSP-7D Wet Shotcrete Machine is widely used for tunnel, culvert, subway, hydroelectric works, underground works and mine laneway.
