Product Details:
Payment & Shipping Terms:
|
| Theory: | Hydraulic Pump | Capacity: | 5-7m3/h |
|---|---|---|---|
| Pressure: | 0-4Mpa | Motor: | 15KW |
| High Light: | mortar pump machine,high pressure grout injection pump |
||
|
Model
|
KBYS Mortar Pump
|
|
|
Output
|
5-7m3/h
|
4-5m3/h
|
|
Pressure
|
0-4Mpa
|
0-6Mpa
|
|
Power
|
15KW
|
15KW
|
|
Outlet diameter
|
38mm
|
38mm
|
|
Inlet diameter
|
75mm
|
75mm
|
|
Cylinder diameter
|
110mm
|
80mm
|
|
Cylinder qty.
|
2
|
2
|
|
Max. particle size
|
<5mm
|
<5mm
|
|
Suction height
|
2m
|
2m
|
|
Dimensions
|
1900*900*1640mm
|
1900*900*1640mm
|
|
Weight
|
550kg
|
520kg
|

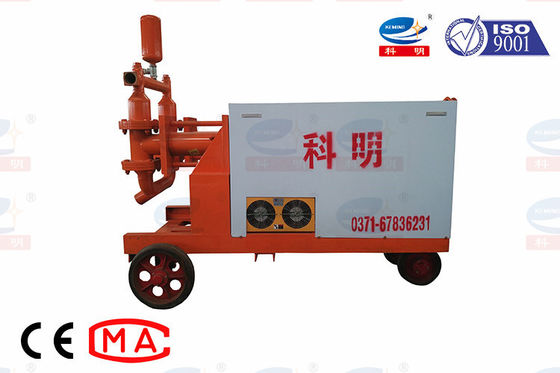

1. KBYS is double cylinder hydraulic cement mortar pump.
2. High working pressure, high output and high efficiency.
3. Widely used to delivery mortar grout or other construction slurry.
1. KBYS hydraulic mortar pump can be used for horizontal and vertical mortar delivering or large area coating in construction engineering.
2. Filling cement grouting of road surface collapse in highway pavement maintenance.
3. Slurry injection expansion in pre-stressed engineering.
4. Dam reinforcement in water engineering.
5. Slope protection grouting in civil engineering, mining tunnel construction etc.
6. Delivering coal ash slurry in thermal power plant.
7. Conveying slurry materials and waste in chemical and paper-making industry.
8. Slurry infusion for furnace maintenance in metallurgy, iron and steel and other industries.
