Product Details:
Payment & Shipping Terms:
|

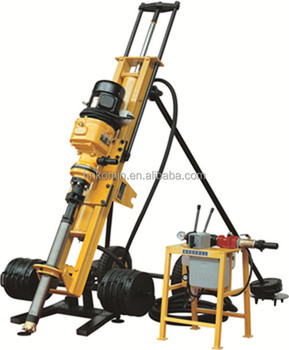

| Product: | KEMING Drilling Rig | Matched Machine: | Mud Pump |
|---|---|---|---|
| Application Site: | Mines And Projects | After-sales Service: | Online Supports Through Video |
| High Light: | Drilling Rig Machine For Rough,80mm Drilling Rig,0.7Mpa High Efficiency Drilling Rig |
||
1. Drilling rig tools widely used in mines, rock engineer, defense, transportation, especially rugged terrain.
2. Low center of gravity, easy to fold and to move.
3. Rotator reducer with high torque ensure operating reliable in the case of strong vibrations or heavy duty
KEMING Drilling Rig Application:
1. communications
2. water conservancy and stonework
| Model | KQD70 | KQD100A | KQF100 | KQJ100A electric | KQJ100A diesel | |
| Rock hardness | F=6-20 | F=6-20 | F=6-20 | F=6-20 | F=6-20 | |
| Borehole Diameter | mm | 50-80 | 68-130 | 68-130 | 68-130 | 68-130 |
| Borehole Depth | m | ≥15 | ≥20 | ≥20 | ≥20 | ≥20 |
| One-time advance length | mm | 1000 | 1000 | 1000 | 1000 | 1000 |
| Swing speed | r/min | 90 | 90 | 110-160 | 0-70 | 0-70 |
| Air consumption | m3/min | ≥3.5 | ≥7 | ≥12 | ≥7 | ≥7 |
| Working air pressure | Mpa | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
| Cylinder diameter | mm | 90 | 140 | 140 | 50 | 50 |
| Max. lifting force | N | 4200 | 7000 | 7000 | 15000 | 15000 |
| Max. advance force | N | 3500 | 5000 | 5000 | 4500 | 4500 |
| Whole weight | kg | 175 | 260 | 260 | 260 | 260 |
| Driving power | kw | 3 | 4 | 4 | 7.5 | 12.1 |
