Product Details:
Payment & Shipping Terms:
|
| Product: | KEMING Concrete Batching Plant | Capacity: | 40-80m³/h |
|---|---|---|---|
| Application Material: | Aggregates | After-sales Service: | Video Supports In Technical |
| High Light: | Concrete Grout Mixer Batching Plant,Grout Batching Plant With Mixing Host,Concrete Grout Mixer 80m3/H |
||

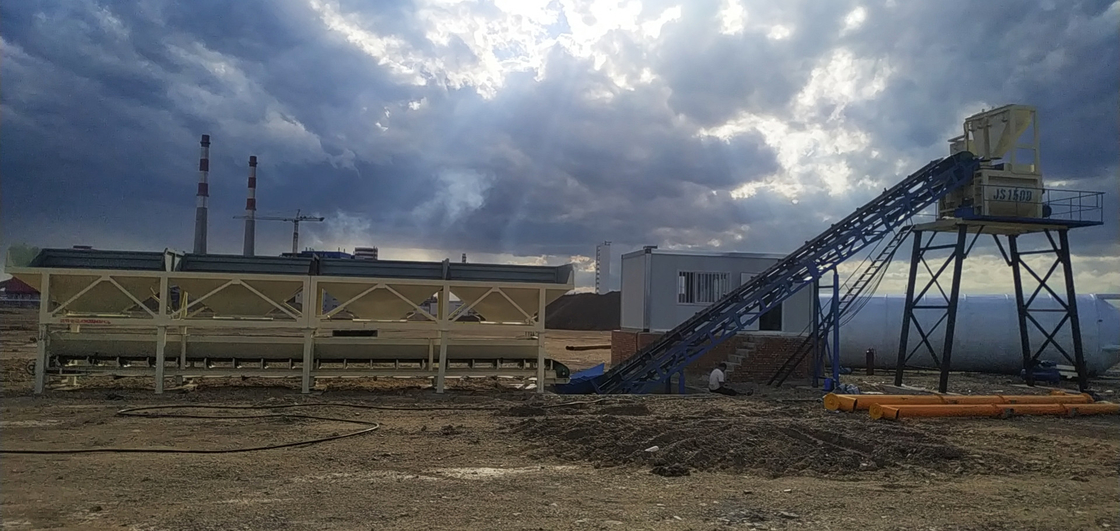

1. HZS concrete batching plant is a building material manufacturing equipment composed of major systems: mixing host, material conveying system, control system and other auxiliary facilities.
2. The sand, cinder and other raw materials are mixed and stirred.
KEMING Concrete Batching Plant Feature:
1. The concrete mixing plant has good mixing performance.
2. The equipment adopts the screw type twin-shaft forced mixing main engine
| Model | HZS25 | HZS35 | HZS50 |
| Mixing capacity | 25m3/h | 35m3/h | 50m3/h |
| Mixing Cycle Time | 72s | 72s | 72s |
| Aggregate amount | 2~3 | 3~4 | 4 |
| Total Installed Capacity | 60kW | 80kW | 111kW |
| Mixing model | JS500 | JS750 | JS1000 |
| Charging Capacity/Discharging Capacity | 800/500L | 1200/750L | 1600/1000L |
| Mixing time | 60s | 60s | 60s |
| Maximum particle size of aggregate (pebble/crushed stone) | <60/80mm | <60/80mm | <60/80mm |
| Discharge height | 2000/3800mm | 3800mm | 3800mm |
| Batching Machine model | PLD800 | PLD1200 | PLD1600 |
| Aggregate weighing range | 0-2000kg | 0-2000kg | 0-2000kg |
| Weighing accuracy | ±2% | ±2% |
±2%
|
| Cement weighing range | 0-250kg | 0-400kg |
0-500kg
|
| Weighing accuracy | ±1% | ±1% | ±1% |
| Water weighing range | 0-150kg | 0-250kg | 0-300kg |
| Weighing accuracy | ±1% | ±1% | ±1% |
| Admixtures weighing range | 0-25kg | 0-30kg | 0-50kg |
| Weighing accuracy | ±1% | ±1% | ±1% |
