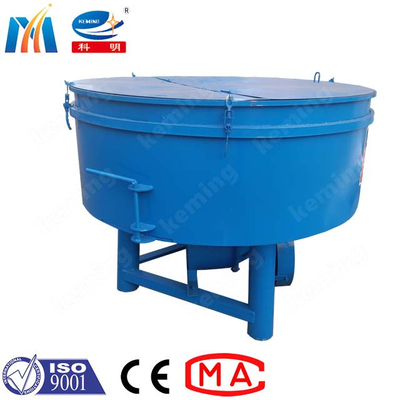

| Product: | KEMING KJW Concrete Pan Mixer | Optional Motor: | Electric And Diesel |
|---|---|---|---|
| Machine Power: | 7.5kw | Sales Service: | Technical Video Support |
| High Light: | KJW Grout Concrete Pan Mixer,Blades KEMING Grout Concrete Pan Mixer,7.5kw Grout Concrete Pan Mixer |
||
1. KJW Concrete Pan Mixer has the advantages of stable performance, convenient operation, high mixing quality and efficiency.
2. Forward rotation stirs the material, which reverse rotation discharges the material.
KEMING KJW Concrete Pan Mixer Features:
1. Easy operation and maintenance.
5. Good mixing quality, fast discharge speed, high efficiency.
|
Model |
Unit |
KJW350 |
KJW500 |
KJW1000 |
|
Drum volume |
L |
350 |
500 |
500 |
|
Capacity |
m3/h |
9~12 |
15~18 |
25~30 |
|
Max. aggregate. size |
mm |
30 |
30 |
40 |
|
Power |
kW |
5.5 |
7.5 |
13 |
|
Shaft rotational speed |
r/min |
21 |
40 |
21 |
|
Dimension (length×width×height) |
mm |
1200*1200*1400 |
1300*1300*1400 |
1800*1800*1400 |
