Product Details:
Payment & Shipping Terms:
|

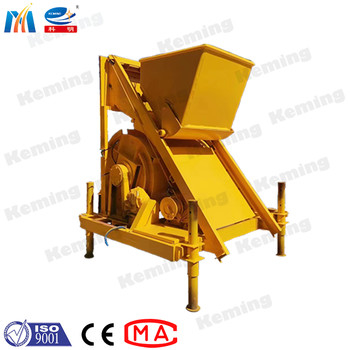

| Product: | JDC Single Shaft Forced Concrete Mixer | Model: | JDC350/500 |
|---|---|---|---|
| Productivity: | 17.5-30m3/h | After-sales Service: | Technical Supported |
| High Light: | JDC Single Shaft Grout Mixer Machine,Grout Mixer Machine for Blades,30m3/h Grout Mixer Machine |
||
1. JDC type single-horizontal shaft forced concrete mixer is a new type of multifunctional mixing machine.
2. The fixed type is more excellent when matched with a one-ton motor dump truck.
3. The wheeled type is suitable for small and medium-sized prefabricated component factories and various construction sites. It is the most convenient to install in conversion sites.
JDC Single Shaft Forced Concrete Mixer Feature:
1. The machine has the advantages of reasonable design, simple structure, convenient operation and reliable work.
2. It has the advantages of good mixing quality, high production efficiency, low energy consumption, low noise, long service life of blades and linings, and easy maintenance.
| Model | JDC350 | JDC500 |
| Discharging capacity (L) | 350 | 500 |
| Charging capacity (L) | 560 | 800 |
| Productivity(m3/h) | 17.5 | 20-30 |
| Max size of aggregate(mm) | 60/40 | 80/60 |
| Stirring shaft speed(r/min) | 27.6 | 24 |
| Total power(kW) | 20.25 | 25.1 |
| Stiring time(s) | 30 | 30 |
| Dimensions (length * width *height)(mm) | 3100x2450x3200 | 3800x2650x3400 |
| Total Weight(kg) | 3200 | 4700 |
