Product Details:
Payment & Shipping Terms:
|

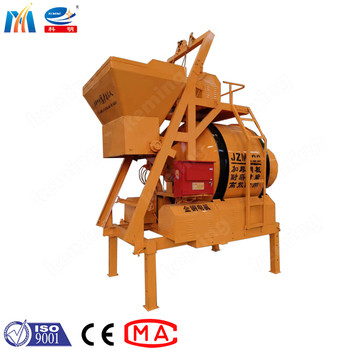

| Product: | JZM Concrete Best Structure Drum Mixer | Application: | Mixing Concrete Mortar |
|---|---|---|---|
| Charging Volume: | 350-500L | After-sales Service: | Technical Supporting |
| High Light: | JZM Concrete Grout Friction Drum Mixer,Less Noise Concrete Grout Friction Mixer,350L Concrete Grout Friction Mixer |
||
1. The JZM series friction mixer is a forward-rotation mixing and reverse-discharge type concrete mixer.
2. Each mixing cycle is about 100 senconds, which can mix plastic and dem-dry hard concrete.
3. This machine adopts friction transmission of rubber supporting wheels, has the advantages of low noise, stable operation, convenient operation and movement, good mixing quality, high production efficiency, high degree of automation, etc.
JZM Concrete Best Structure Drum Mixer Feature:
1. JZM friction concrete mixer has low noise and stable operation.
2. JZM series concrete mixer is mainly used to mix plastic concrete and half-dry concrete.
3. It has the advantages of convenient operation and movement, high mixing quality, and can mix plastic and semi-dry concrete.
|
Model |
JZM350 |
JZM400 |
JZM450 |
JZM500 |
|
Charging volume (L) |
350 | 400 | 450 | 500 |
|
Discharging capacity (L) |
560 | 640 | 720 | 800 |
|
Productivity (m3/h) |
10-13 | 12-18 | 14-19 | 16-20 |
|
Rev of drum (r/min) |
15 | 15 | 15 | 15 |
|
Max. Aggregate size (mm) |
60 | 60 | 60 | 60 |
|
Water-supply error |
≤2% | ≤2% | ≤2% | ≤2% |
|
Stirring motor(kW) |
5.5 | 5.5 | 7.5 | 5.5*2 |
|
Hoisting motor(kW) |
4.5 | 4.5 | 4.5 | 4.5 |
|
Water pump motor(kw) |
0.55 | 0.75 | 0.75 | 1.1 |
|
Tires |
650-16 | 650-16 | 700-16 | 700-16 |
|
Towing speed(km/h) |
≤20 | ≤20 | ≤20 | ≤20 |
|
Dimension(L*W*H)(m) |
3.8*2.05*2.69 | 3.8*2.2*2.85 | 4*2.3*2.9 | 5.7*2.35*5.1 |
|
Machine Weight (kg) |
1950 | 2100 | 2400 | 2800 |
