Product Details:
Payment & Shipping Terms:
|
| Product Name: | Air Motor Grout Pump | Keyword: | Air Motor Grout Pump |
|---|---|---|---|
| Application: | Grout Water, Cement Slurry, Water Glass And Other | Warranty Service: | Technical Video Support |
| High Light: | Air Motor Grout Pump,Air Motor Cement Grouting Pump |
||

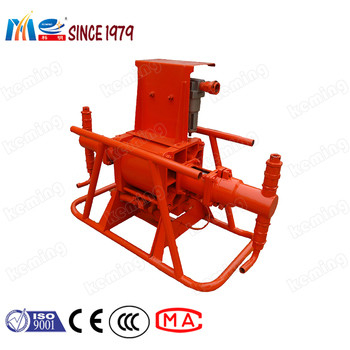

1. Air Motor Grout Pump is widely used for water blocking and rock consolidation in coal mine, subway, hydro-power constructions, or for pre-grouting of working surface in deep well.
2. Air Motor Grout Pump uses compressed air to transmit pressure signal.
3. It can be used to transport water, cement slurry, water glass or other less viscous and corrosive liquids.
| Items | Parameters | |
| 2ZBQ-10/3 | ZBQ-25/2 | |
| Pressure(Mpa) | 0-3 | 0-5.5 |
| Output(L/min) | 0-14 | 0-30 |
| Working aire pressure(Mpa) | 0.2-0.63 | |
| Inlet dia. (mm) | 25 | 38 |
| Outlet dia.(mm) | 13 | 19 |
| Items | Parameters | ||||
| 2ZBQ-20/4 | 2ZBQ-10/10 | 2ZBQ-70/7 | 2ZBQ-30/30 | 2ZBQ-50/19 | |
| Output pressure Mpa | 4 | 10 | 7 | 30 | 19 |
| Output capacity L/min | 20 | 10 | 70 | 30 | 50 |
| Working air pressure Mpa | 0.2-0.63 | ||||
|
Outlet dia. mm |
25 | ||||
| Inlet dia. mm | 13 | 19 | |||
Air Motor Grout Pump Application:
1. Air Motor Grout Pump is widely used for water blocking and rock consolidation in coal mine, subway, hydro-power constructions, or for pre-grouting of working surface in deep well.
2. Air Motor Grout Pump uses compressed air to transmit pressure signal.
3. It can be used to transport water, cement slurry, water glass or other less viscous and corrosive liquids.
FAQ
---Cement Pump, Mortar Pump, Mud Pump
1. Q: Which pump model should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
3. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
