Product Details:
Payment & Shipping Terms:
|
| Product Name: | KEMING Air Driven Grout Pump | Inlet Dia: | 25-38mm |
|---|---|---|---|
| Advantage: | Pneumatic Motor | Warranty Service: | Technical Support Video |
| High Light: | Air Driven Grout Pump,Double Liquid Cement Slurry Grouting Pump,38mm Cement Slurry Grouting Pump |
||

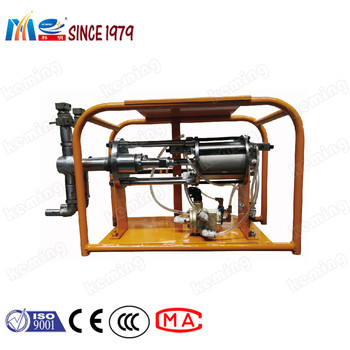

1. KEMING Air Driven Grout Pump can be used to transport water, cement slurry, water glass or other less viscous and corrosive liquids.
2. KEMING Air Driven Grout Pump has single or double liquid grouting function.
3. KEMING Air Driven Grout Pump uses compressed air to transmit pressure signal.
| Items | Parameters | |
| 2ZBQ-10/3 | ZBQ-25/2 | |
| Pressure(Mpa) | 0-3 | 0-5.5 |
| Output(L/min) | 0-14 | 0-30 |
| Working aire pressure(Mpa) | 0.2-0.63 | |
| Inlet dia. (mm) | 25 | 38 |
| Outlet dia.(mm) | 13 | 19 |
| Items | Parameters | ||||
| 2ZBQ-20/4 | 2ZBQ-10/10 | 2ZBQ-70/7 | 2ZBQ-30/30 | 2ZBQ-50/19 | |
| Output pressure Mpa | 4 | 10 | 7 | 30 | 19 |
| Output capacity L/min | 20 | 10 | 70 | 30 | 50 |
| Working air pressure Mpa | 0.2-0.63 | ||||
|
Outlet dia. mm |
25 | ||||
| Inlet dia. mm | 13 | 19 | |||
KEMING Air Driven Grout Pump Application:
1. KEMING Air Driven Grout Pump can be used to transport water, cement slurry, water glass or other less viscous and corrosive liquids.
2. KEMING Air Driven Grout Pump has single or double liquid grouting function.
3. KEMING Air Driven Grout Pump uses compressed air to transmit pressure signal.
Company Information Introduction:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
