| Product Name: | Air Driven Grouting Pump | Drive: | Pneumatic Motor |
|---|---|---|---|
| Weight: | 150kg | Warranty Service: | Technical Video Support |
| High Light: | Simultaneously Air Driven Grouting Pump,150kg Air Driven Grouting Pump,Air Driven Grouting Pump Cylinder Work |
||

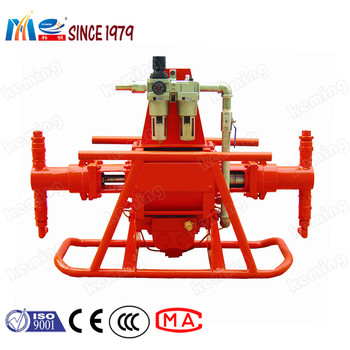

1. KEMING Air Driven Grout Pump uses compressed air to transmit pressure signal.
2.It is widely used for water blocking and rock consolidation in coal mine, subway, hydro-power constructions, or for pre-grouting of working surface in deep well.
3. It can be used to transport water, cement slurry, water glass or other less viscous and corrosive liquids.
| Items | Parameters | |
| 2ZBQ-10/3 | ZBQ-25/2 | |
| Pressure(Mpa) | 0-3 | 0-5.5 |
| Output(L/min) | 0-14 | 0-30 |
| Working aire pressure(Mpa) | 0.2-0.63 | |
| Inlet dia. (mm) | 25 | 38 |
| Outlet dia.(mm) | 13 | 19 |
| Items | Parameters | ||||
| 2ZBQ-20/4 | 2ZBQ-10/10 | 2ZBQ-70/7 | 2ZBQ-30/30 | 2ZBQ-50/19 | |
| Output pressure Mpa | 4 | 10 | 7 | 30 | 19 |
| Output capacity L/min | 20 | 10 | 70 | 30 | 50 |
| Working air pressure Mpa | 0.2-0.63 | ||||
|
Outlet dia. mm |
25 | ||||
| Inlet dia. mm | 13 | 19 | |||
Air Driven Grouting Pump Application:
1. KEMING Air Driven Grout Pump uses compressed air to transmit pressure signal.
2.It is widely used for water blocking and rock consolidation in coal mine, subway, hydro-power constructions, or for pre-grouting of working surface in deep well.
3. It can be used to transport water, cement slurry, water glass or other less viscous and corrosive liquids.
FAQ
---Cement Pump, Mortar Pump, Mud Pump
1. Q: Which pump model should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
3. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
