Product Details:
Payment & Shipping Terms:
|

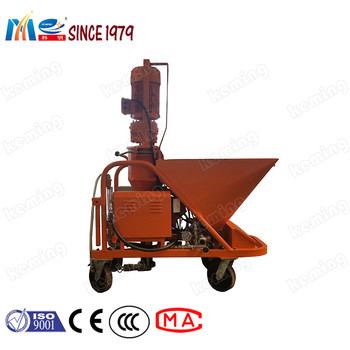

| Product Name: | KLL Series Plastering Machine For Mortar Plastering | Rated Air Output: | 250L/min |
|---|---|---|---|
| Max. Particle Size: | 4 Mm | Warranty Service: | Technical Service |
| High Light: | Integrated Plastering Machine,4 mm Mortar Plastering Machine,KLL Series Plastering Machine |
||
1.High work efficiency, low noise.
2.Air valve of spray gun controls the machine running, convenient operation and worker saving.
3.Compact structure, simple operation and convenient maintenance.
| Model | KLL Plastering Machine |
| Rated Output | 20-60L/min |
| Rated Work Pressure | 3MPa |
| Total Power | 8.5kW |
| Main Electric Motor | 5.5kW, 380V60Hz |
| Rev. of Rotor | 380rpm |
| Rated Air Output | 250L/min |
| Water Pump Rated Output | 700L/h |
| Max. Conveying Dist. | 50m |
| Hopper Capacity | 120L |
| Loading Height | 1m |
| Conveying Hose ID | 25/32mm |
| Air Hose ID | 13mm |
| Overall Dimension | 1240×750×1600 mm |
| Weight | 280kg |
KLL Series Plastering Machine for Mortar Plastering Application:
1.High work efficiency, low noise.
2.Air valve of spray gun controls the machine running, convenient operation and worker saving.
3.Compact structure, simple operation and convenient maintenance.
