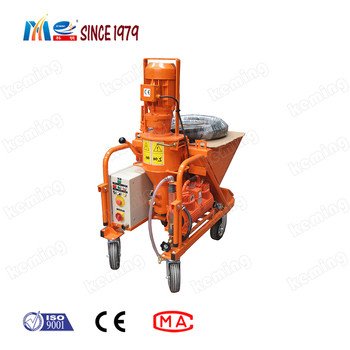

Automatic Mortar Plastering Machine 3 Mpa KEMING KLL With Mixer

Automatic Mortar Plastering Machine 3 Mpa KEMING KLL With Mixer
Automatic Mortar Plastering Machine 3 Mpa KEMING KLL With Mixer
video play

Large Image :  Automatic Mortar Plastering Machine 3 Mpa KEMING KLL With Mixer

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: KLL Automatic Plastering Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product Name: KLL Automatic Plastering Machine Selling Point: Small Size
Rated Working Pressure: 3 Mpa Warranty Service: Technical Support
High Light:

Automatic Plastering Machine

,

3 Mpa Mortar Plastering Machine

,

Mortar Plastering Machine With Mixer

Automatic Plastering Machine KEMING KLL Plastering Machine with Mixer

KLL Automatic Plastering Machine Features:

1.KLL plastering machine includes mixer, self-priming water pump, mini air compressor, screw pump.

2.Small size, light weight, convenient movement and operation indoor and outdoor.

3.Continuous and even material pumping of screw pump.

KLL Automatic Plastering Machine Technical Parameters:

Model KLL Plastering Machine
Rated Output 20-60L/min
Rated Work Pressure 3MPa
Total Power 8.5kW
Main Electric Motor 5.5kW, 380V60Hz
Rev. of Rotor 380rpm
Rated Air Output 250L/min
Water Pump Rated Output 700L/h
Max. Conveying Dist. 50m
Hopper Capacity 120L
Loading Height 1m
Conveying Hose ID 25/32mm
Air Hose ID 13mm
Overall Dimension 1240×750×1600 mm
Weight 280kg



KLL Automatic Plastering Machine Application:

1.KLL plastering machine includes mixer, self-priming water pump, mini air compressor, screw pump.

2.Small size, light weight, convenient movement and operation indoor and outdoor.

3.Continuous and even material pumping of screw pump.



Automatic Mortar Plastering Machine 3 Mpa KEMING KLL With Mixer 0



FAQ



---Plastering Machine, Cement Mortar Spraying Machine

1. Q: Which plastering machine should we choose?

A: To recommend the most suitable model, please tell us:

- Material: putty, cement, mortar, or other materials;

dry / damp mixture, or ready mixed wet mixture

- Capacity: 120m2/h, 150m2/h, 160m2/h, 180m2/h

- Delivery distance (horizontally / vertically):

- Driven type: electric motor, diesel engine



2. Q: What is the vulnerable part? How many spares should we prepare?

A: After long-time running, the stator & rotor, spraying nozzle may get worn. We will offer some spares for free.

Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many square meters you will spray.



3. Q: What should we do if there are some problems with the machine?

A: The Operate Instruction will help with routine maintenance and common problems.

Also, you can contact us for technical instruction by email, instant messenger or live video etc.
