Product Details:
Payment & Shipping Terms:
|

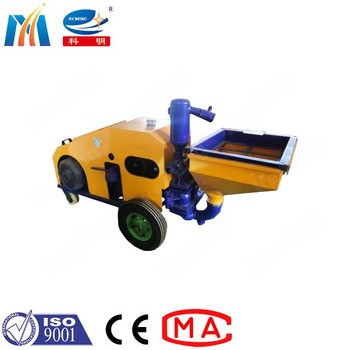

| Product Name: | KEMING KZW Mortar Spraying Machine | Engine: | Electric And Diesel Engine |
|---|---|---|---|
| Main Engine Power: | 11kw | Warranty Service: | Online Video Service |
| High Light: | Four Speed Shift Mortar Plastering Machine,11kw Mortar Spraying Plastering Machine,Mortar Plastering Machine For Conveying |
||
1. KZW mortar spraying machine is a double cylinder four-speed plunger type equipment.
2. It is based on years of experience and some advanced foreign technology.
3. It is more than the life of various screw type spraying equipment used in the market.
4. To be long, the speed is faster than the similar machine.
| Technical parameters | High speed 1 | High speed 2 | High speed 3 | High speed 4 |
| Max. conveying capacity | 6m3/h | 4m3/h | 3m3/h | 2m3/h |
| Horizontal conveying dist. | 150m | 100m | 80m | 80m |
| Vertical conveying dist. | 60m | 40m | 30m | 30m |
| Maximum mortar ratio | 1:3 | |||
| Displacement of air compressor | 0.36m3/min | |||
| Air compressor power | 3kw | |||
| Total weight | 500kg | |||
| Outline size | 2000*850*950mm | |||
| Main engine power | 11kw | |||
KEMING KZW Mortar Spraying Machine Application:
1. KZW mortar spraying machine is a double cylinder four-speed plunger type equipment.
2. It is based on years of experience and some advanced foreign technology.
3. It is more than the life of various screw type spraying equipment used in the market.
4. To be long, the speed is faster than the similar machine.
Company products Application:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
