Reducer Type: | Gear Reducer, Cycloidal Reducer | Theory: | Peristaltic Pump |
---|---|---|---|
Capacity: | 8~9 M3/h | Hose ID.: | 60mm |
Keyword: | Fine Aggregate Concrete Hose Pump | After Warranty Service: | Online Support |
High Light: | Fine Aggregate Hose Pump,Spray Of Cement Mortar Hose Pump,Concrete Hose Pump For Chemical |

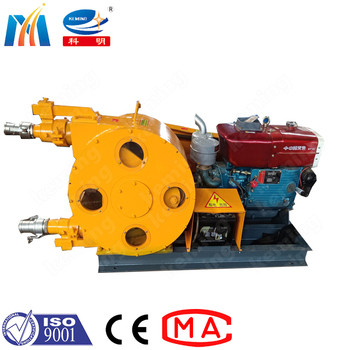

Hose Pump are the very mature products with different kinds of standard models and many special models designed as the customer’s request. The working pressure ranges from 0.6~1.5 MPa, and output capacity from 0.01~50 m3/h.
1. No valve operation, no back flow, stable pumping flow, low fault rate.
2. High vacuum, strong self-suction capacity.
3. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
4. Convenient maintenance, less wearable parts (except extruded hose).
Model | Rated output m3/h | Rated pressure | Rated power kw | Max. aggregate size mm | Max. suction dist. m |
KH15 | 0.3 | 0.6 | 0.55 | 2 | 2 |
KH25 | 0.8-1.3 | 1.5 | 1.1/1.5 | 3 | 3 |
KH32 | 1.3-1.8 | 1.5 | 2.2 | 3 | 4 |
KH40 | 2.0-3.5 | 1.5 | 2.2/4 | 4 | 4 |
KH50 | 4.0-8.0 | 1.5 | 4/5.5/7.5 | 5 | 5 |
KH65 | 9.0-15.0 | 1.0 | 7.5/11 | 6 | 5 |
KH75 | 15.0-30.0 | 1.0 | 11/15 | 6 | 5 |
KH90 | 30.0-40.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
KH100 | 40.0-50.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
KH130 | 50.0-70.0 | 1.0 | 18/22 | 6/10(soft) | 5 |
KH150 | 70.0-80.0 | 1.0 | 22/30 | 6/10(soft) | 5 |
KH200 | 100.0-110.0 | 1.0 | 30/37 | 6/15(soft) | 5 |
