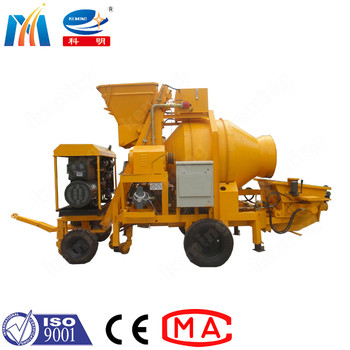

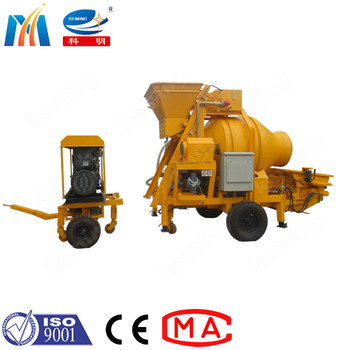

Product Name: | KEMING Concrete Pump With Mixer | Keyword: | Concrete Mixer Pump |
---|---|---|---|
Driven Mode: | Electric Motor | Selling Point: | Flexible Maneuverability |
Max. Vertical Delivery Distance: | 30-80M | After-sales Service Provided: | Online Support |
High Light: | 80M Concrete Mortar Pump,Heat Insulated Mortar Grout Pump,MA Cement Mortar Pump |
1. KEMING Concrete Pump with Mixer spare parts are from high quality products of famous brand.
2. KEMING Concrete Pump with Mixer has double cylinder hydraulic pump system with reliable performance.
3. KEMING Concrete Pump with Mixer combines concrete mixer and concrete pump as one new concrete pumping machine with concrete mixer.
1. pump concrete, fine aggregates such as fine stone and mortar etc.
2. pump heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. pump plain concrete and fiber concrete in engineering construction.
4. pump refractory and thermal insulation material.
5. pump afforestation soil in ecological environment construction.
Items | Unit | Parameters | |||||
KBT2506/JZM450 | KBT2506/JZM350 | KBT2006/JZM300 | KBT20/JZC350 | KBT0804/JZC200 | |||
Capacity | m3/h | 25(18) | 25(18) | 20(13) | 20(15) | 8(6) | |
Max. aggregate size | mm | 40 | 40 | 40 | 40 | 30 | |
Delivery pipe | mm | DN125 | DN125 | DN125 | DN125 | DN125 | |
Max. dist | horizontally | m | 200 | 200 | 150 | 150 | 100 |
vertically | m | 80(60) | 80(60) | 60(40) | 60(40) | 30 | |
Mixer type | JZM450 | JZM350 | JZM300 | JZC350 | JZC200 | ||
Charge hopper | L | 720 | 560 | 500 | 560 | 300 | |
Discharge hopper | L | 450 | 350 | 300 | 350 | 200 | |
Diameter of drum | mm | 1550 | 1440 | 1260 | 1440 | 1000 | |
Output pressure | Mpa | 6-8 | 6-8 | 5-8 | 5-8 | 3-5 |
